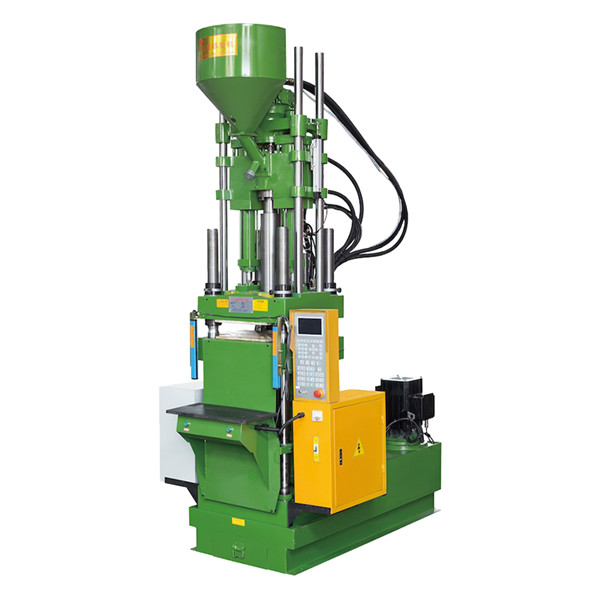

HONLED's thermoset injection molding machine features a strong mechanical structure, ensuring stable operation of the equipment. It is equipped with an advanced Oil flow controller to achieve precise injection. Its high injection pressure can meet the requirements of complex processes. It is highly suitable for various products of thermosetting molding and is widely applied in thermoset molding fields such as electronics, electrical appliances, and auto parts. HONLED thermoset molding machine performs outstandingly in thermoset injection moulding / thermoset injection molding operations, facilitating the efficient production of high-quality products.
The HONLED Thermoset BMC injection molding machine features high injection pressure and a reinforced mechanical structure. The oil flow controller enables precise temperature control, making it suitable for the efficient molding of thermosetting materials. With the optional servo system, it can save 60% of energy. It is your most reliable solution for vertical injection machines.
Technical Parameters
Nameof ltem | BMC injection molding machine |
Screw Diameter(mm) | 70 |
Theoretical Shot Volume(cm³) | 1153 |
Injection Rate(cm³/S) | 2131 |
Injection weigh(g) | 1073 |
Injection pressure(kgf/cm²) | 1458 |
Clamping Type | Double Elbow |
Ejection Stroke(mm) | 130 |
Clamping Force(ton) | 200 |
Max.Mould Plate Stroke(mm) | 350 |
Mold Thicknes(mm) | 400 |
Distance Between Tie Bare(mm) | 610x510 |
Platen Size(mm) | 850x750 |
Heating Power(kw) | 10.5 |
Pump Motor Power(kw) | 22 |
Machine Weigh(ton) | 56 |
Machine Dimension(m) | 2.3x1.3x3.8 |
Features of HONLED Thermoset Injection Molding Machine
Oil Flow Controller & Robust Design
Using oil as a heat transferring medium, the HONLED thermoset molding machine is made of stainless steel and equipped with world-class flow controller for stable heating. The injection pressure is high, and the quality of thermosetting molding can reach high quality.
Specialized Screw and Hopper
The thermoset molding machine features a special screw and hopper designed specifically for the characteristics of thermosetting materials. It ensures smooth rotary charging even at low pressure, which improves operational efficiency.
Reinforced Injection System
Thermoset injection molding machine boasts an enhanced injection system that offers injection pressure exceeding that of thermoplastic series by over 20%, making it ideal for thermosetting use.
Specialized Injected Unit & Insulation
Its unique injection system, along with upper and lower insulator plates, minimizes heat loss and provides endurance, making these machines ideal for thermosetting molding applications.
Energy-Efficient Servo Option
HONLED thermoset molding machine also features an optional servo system that can lead to an energy consumption of 60% less for a more eco-friendly and cost-effective solution for manufacturers.
Application of HONLED Thermoset Molding Machine
HONLED's thermoset injection molding machines play a crucial role in multiple fields.
Electronic Component Manufacturing
HONLED's thermoset BMC injection molding machines can precisely shape the casings of various electronic components. Relying on an excellent temperature control system, it ensures the stable performance of the casing materials during the curing process, meeting the strict requirements of electronic components for dimensional accuracy and insulation.
Automotive Parts Production
HONLED Thermoset BMC injection molding machine is used to manufacture automotive interior parts, small structural parts, etc. Its efficient mold-closing and injection systems can quickly produce high-strength and wear-resistant automotive parts, improving production efficiency and product quality.
Electrical Insulation Product Processing
When manufacturing electrical insulation materials, this thermoset molding machine can evenly inject thermoset materials into the mold, achieving high-precision molding of complex shapes and ensuring electrical insulation performance.

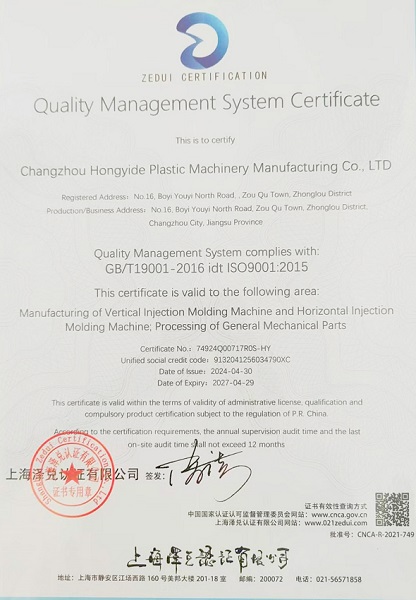

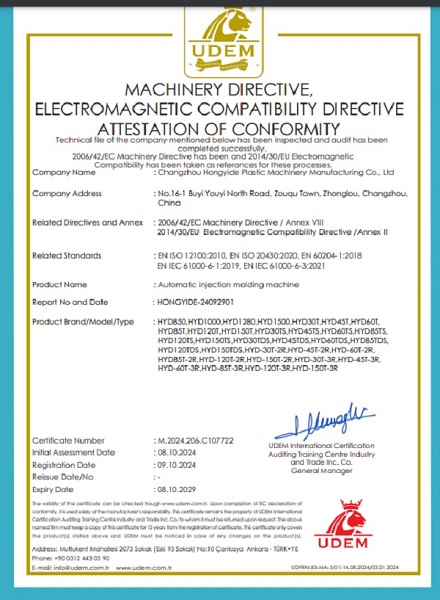

Certification
FAQ
Q:What is thermoset injection molding?
A:Thermoset injection molding is a process of injecting thermosetting materials (such as epoxy resin and phenolic resin) into a mold and curing them through heating and applying pressure. Unlike thermoplastic materials, thermosetting materials cannot be remelted after curing. HONLED's thermoset injection molding machine is specifically designed for this process. It features high injection pressure and a precise temperature control system, ensuring the efficient production of high-quality thermoset products like electrical insulation parts and automotive components.
Want to know more about thermoset injection molding,click here!
Q:What is the difference between thermoplastic and thermoset injection molding?
A:In thermoplastic injection molding, materials such as common polyethylene can be melted and molded repeatedly. In contrast, thermoset injection molding uses materials like epoxy resin, which cannot be remelted after curing. Thermoset injection molding often requires higher pressure and more precise temperature control. HONLED's thermoset molding machine can meet these requirements well, resulting in products with more stable performance and better heat resistance.
Q:Can thermosets be machined?
A:Thermosetting materials can be processed. However, due to their characteristic of not being remeltable after curing, the processing methods are different from those of thermoplastic materials. Usually, methods such as machining and laser processing are employed. HONLED's thermoset BMC injection molding machine can first precisely mold the thermosetting materials, and then carry out appropriate processing according to requirements later to meet the complex technological requirements of different products.
Finished Product Display
Company Profile
As one of top vertical injection molding machine manufacturers,HONLED Plastics Machinery Co., Ltd has been committed in producing high quality thermoset molding machine producer since its foundation at 1998. Our company occupies 8000M with the capacity of 1000 sets per year of injection machine, the clamping force from 30T to 1000T.
And our company have passed IS09002 certification and all of our machine have got CE certification.
Now we have served severalthousand domestic customers and exported to more than 30 countries.
