Dual Color Injection ：Produces vibrant two-tone soles in single cycle
High Precision ： Ensures perfect color blending and consistent sole thickness
Multi-Material Capability ： Works with PVC, TPR and TPU materials
Vertical Design ：Space-saving structure with easy mold access
Automated Operation ： Reduces labor costs with auto-ejection system
Energy Efficient ： 20% lower power consumption than conventional machines
Characteristics of Double Color PVC Sole Injection Machine
Dual-Color Precision Technology

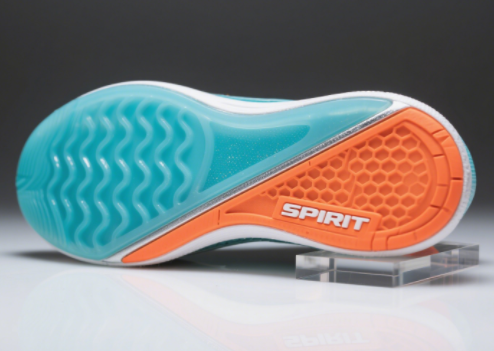

Advanced injection system creates perfectly blended two-tone soles in one operation
±0.5mm thickness accuracy ensures premium product consistency
Multi-Material Versatility
Handles PVC/TPR/TPU with quick-change molds

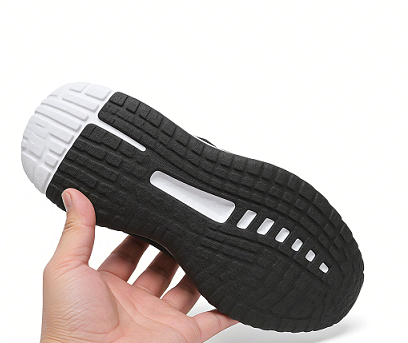

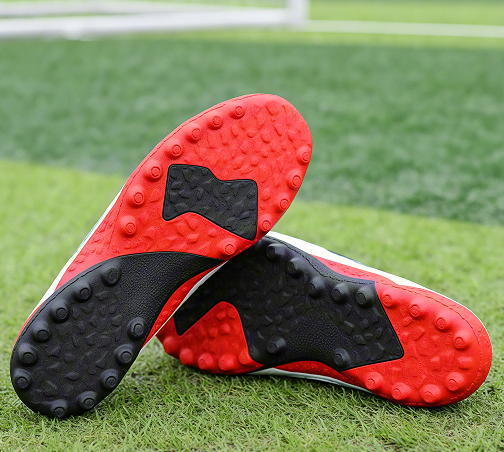

Specialized for safety shoes, fashion footwear & sports soles
European-Design Vertical Structure
40% space-saving vs horizontal machines
Ergonomic design enables easier mold changes & maintenance
Smart Automation Features
Auto-color switching system
Robotic arm integration ready (optional)
Touchscreen PLC control with multi-language interface
Name | HYD1280 |
Screw Diameter(mm) | 45/50/55 |
Theoretical Shot Volume(cm³) | 275/325/420 |
Injection Rate(cm³/S) | 180 |
Injection weigh(g) | 260/310/400 |
Injection pressure(kgf/cm²) | 1500 |
Clamping Type | Double Elbow |
Ejection Stroke(mm) | 100 |
Clamping Force(ton) | 128 |
Max.Mould Plate Stroke(mm) | 350 |
Mold Thicknes(mm) | 430 |
Distance Between Tie Bare(mm) | 460x360 |
Platen Size(mm) | 660x560 |
Heating Power(kw) | 6.8 |
Pump Motor Power(kw) | 11-13 |
Machine Weigh(ton) | 2.8 |
Machine Dimension(m) | 2.1x1.3x3.1 |
Advantages of HONLED Sole Injection Machine
Ultra-Efficient Production
The vertical Sole Injection Machine of HONLED is renowned for its outstanding high-efficiency production capacity. Through a fully automated process, it greatly speeds up the upper molding process, ensuring that enterprises can quickly respond to market changes and shorten the delivery cycle, thus seizing the initiative in the highly competitive market.
Precision Injection Molding
Adopting the industry-leading precision injection molding technology, HONLED's equipment can ensure that each Sole Injection Machine is precise without errors, and the craftsmanship is shown in every detail. This not only improves the overall quality of the products but also meets the pursuit of perfect details in the high-end market, helping enterprises build their brand images.
Modular Design,
Thanks to its innovative modular design concept, the HONLED vertical Sole Injection Machine can easily adapt to the production requirements of different shoe styles and sizes. From children's shoes to adult shoes, from casual shoes to sports shoes, comprehensive coverage can be achieved simply by replacing molds and functional modules, flexibly meeting the diverse needs of the market.
Material Optimization
HONLED's Sole Injection Machine has carried out in-depth optimization in injection molding processes and material management, effectively reducing material waste and lowering production costs.
Intelligent Operation
The HONLED vertical Sole Injection Machine is equipped with an intelligent control system with a user-friendly interface and simple operation. Whether one is a novice or an experienced worker, it is easy to use. Meanwhile, it monitors the production status in real time, making production management more intuitive and efficient, further improving the overall operational efficiency and enabling enterprises to easily cope with various production challenges.
Certification
FAQ
1.Q:What is a vertical injection molding machine?
A:A vertical injection molding machine is an advanced injection - molding device. Its injection unit and clamping unit are arranged vertically. In the footwear manufacturing industry, a vertical injection molding machine like the vertical shoe upper molding machine can accurately inject liquid materials vertically into the mold. This allows for better control of the material flow and filling in the vertical direction, thus efficiently shaping high - quality shoe uppers.
2.Q:Which company is best for an injection molding machine?
A:It's hard to say absolutely which company has the best injection molding machine. However, HONLED is a high - quality brand worthy of consideration. Its vertical shoe upper molding machine is equipped with a precise injection system, which can effectively ensure the quality of shoe upper molding. Moreover, HONLED continuously invests in technology research and development, provides reliable after - sales service, and has a good reputation among similar products.
3.Q:What is the difference between vertical and horizontal injection molding machines?
A:The main difference between vertical injection molding machines and horizontal injection molding machines lies in the installation direction of the injection unit and the mold. In a vertical injection molding machine, the injection unit is perpendicular to the clamping unit. It is suitable for small - sized molds as well as multi - variety and small - batch production, such as for shoe uppers, and it can handle the vertical flow of materials more effectively. On the other hand, a horizontal injection molding machine is suitable for large - sized molds, offers a larger operating space, and is widely used in fields such as automotive and aerospace.
4.Q:How much does an injection molding machine cost per hour?
A:The hourly cost of an injection molding machine varies depending on factors such as model, energy consumption, maintenance costs, and production efficiency. The specific cost needs to take into account equipment depreciation, electricity bills, labor costs, and consumables. HONLED's vertical shoe upper molding machine offers a highly competitive cost per unit of time with its high efficiency and low energy consumption.
Company Profile
As one of top vertical injection molding machine manufacturers,HONLED Plastics Machinery Co., Ltd has been committed in producing high quality shoe upper machine producer since its foundation at 1998. Our company occupies 8000M with the capacity of 1000 sets per year of small plastic injection molding machine, the clamping force from 30T to 1000T.And our company have passed IS09002 certification and all of our plastic shoe making machine have got CE certification.Now we have served severalthousand domestic customers and exported to more than 30 countries.
Why Do Customers Choose Our Shoe Sole Molding Machine?
Professional sales service
You can purchase our shoe upper machine by phone. Our company has a dedicated sales team to serve you.
Procurement plan evaluation
Conduct professional assessments of customer situations and recommend suitable products based on needs.
Product usage training
Provide one-stop services such as shoe upper machine usage training and maintenance.
Pay attention to product quality
Nationwide warranty for 12 months, free parts replacement during the warranty period.
Now we have served severalthousand domestic customers and exported to more than 30 countries.
