PVC shoe upper Injection Molding Machine Supplier From China-HONLED

PVC shoe upper Injection Molding Machine丨shoe injection machine

Precision Molding : ±0.3mm accuracy for flawless PVC/TPU uppers

Space-Saving Design :Vertical structure saves 40% floor space

High Efficiency : 30-50 pairs/hour production capacity

Energy Saving : 20% lower power consumption

Automation Ready : PLC control with robotic integration

Multi-Material : Handles PVC, TPU, and TPR materials

Ideal for sports/safety shoes production. CE & ISO certified with global service support.

Inquire Now

Category:Special Shoe Sole Molding Machines

Product Detail

Our advanced PVC shoe upper machine revolutionizes footwear production with:

Precision Digital Control

Accurate digital measurements ensure perfect dimensional accuracy every time

Real-time monitoring for consistent product quality

Intelligent Operation System

Ergonomically designed control panel for simplified operation

Smart material distribution system maximizes efficiency

Multi-Color Production Capability

Flexible host/auxiliary machine configuration adapts to various production needs

Specialized for single/double/triple-color PVC shoe upper manufacturing

High-Efficiency Output

Simultaneous production of three complete PVC uppers per cycle

30% faster production speed compared to conventional machines

Why Choose Our PVC shoe upper Injection Molding Machine?

Higher precision with digital measurement technology

Greater versatility for multi-color designs

Stronger productivity with triple-upper output

Simpler operation with intelligent controls

The shoe upper machine is perfect for manufacturers of sports shoes, safety shoes, and fashion footwear seeking to boost output while maintaining premium quality.

Specification Sheet

Name	PVC shoe upper Injection Molding Machine HYD1280
Screw Diameter(mm)	45/50/55
Theoretical Shot Volume(cm3)	275/325/420
Injection Rate(cm3/S)	180
Injection weigh(g)	260/310/400
Injection pressure(kgf/cm2)	1500
Clamping Type	Double Elbow
Ejection Stroke(mm)	100
Clamping Force(ton)	128
Max.Mould Plate Stroke(mm)	350
Mold Thicknes(mm)	430
Distance Between Tie Bare(mm)	460x360
Platen Size(mm)	660x560
Heating Power(kw)	6.8
Pump Motor Power(kw)	11-13
Machine Weigh(ton)	2.8
Machine Dimension(m)	2.1x1.3x3.1

Features of Shoe Upper Vertical Injection Machine

Precision Molding Technology

Achieves ±0.3mm dimensional accuracy for consistent upper quality

Specialized multi-point injection system ensures even material distribution

Space Optimization

Vertical clamping design saves 40% floor space vs horizontal machines

Integrated hydraulic system requires only 2m² operation area

Material Versatility

Processes PVC/TPU/TPR with quick-change mold system

Handles transparent/colored materials without contamination

Energy Efficiency

German servo motors reduce power consumption by 25%

Automatic standby mode cuts energy waste during pauses

Quality Assurance

CE/ISO certified with 12-month warranty

Laser-guided mold alignment ensures perfect closure

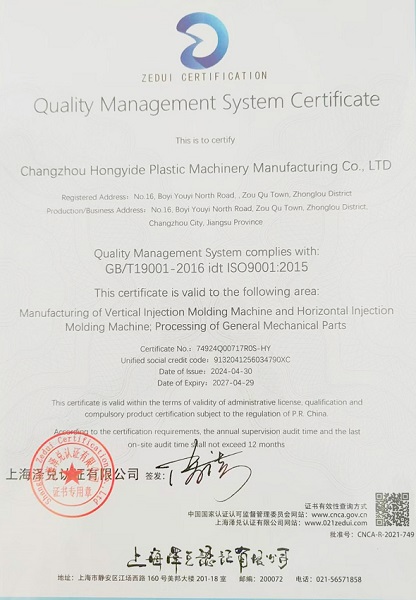

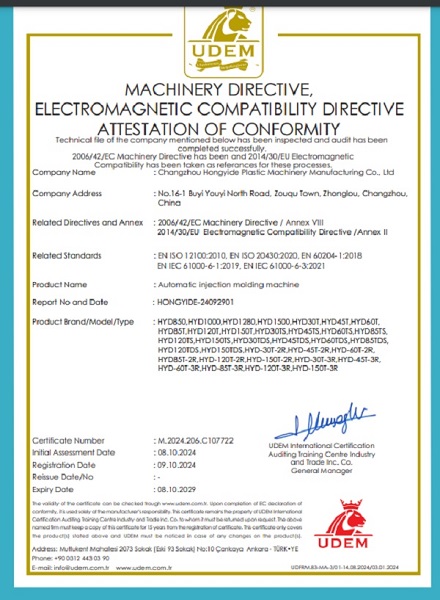

Certification

FAQ

1.Q:How to make PU sole?

A:To make PU soles using PU shoe materials, first, prepare high - quality PU raw materials. Put the raw materials into the hopper of the PU shoe sole making machine. Then, precisely control the temperature and pressure through the machine. The machine injects the raw materials into the sole mold. After curing and shaping, demold the sole and perform post - treatments such as trimming and polishing. Thus, the PU sole can be obtained.

2.Q:Is PU sole good for shoes?

A:PU soles are great for all kinds of shoes. PU material has good wear resistance, so it can prolong the service life of shoes. It stretches nicely, so it is comfortable to wear and offers some cushioning effect. P I U soles have fine workmanship with different styles available for you to choose the ones you like. And what is more light weight means the feet will not be all that tired in walking around.

3.Q:What is the difference between PU and PVC sole?

A:There are certain differences between PU soles and PVC soles. PU soles have a softer texture, better elasticity, comfort and breathability, and their appearance and touch are closer to natural leather. PVC soles are relatively harder, with good abrasion resistance but slightly poorer elasticity. PU has a higher cost and is commonly used in mid-to-high-end shoes; PVC has a lower price and is widely used in low-to-mid-end shoes.

4.Q:What are the disadvantages of PU soles?

A:Hydrolysis resistance of PU soles is poor, making them prone to aging and damage in humid environments. Prolonged exposure to sunlight can cause them to discolor and harden. In addition, although the abrasion resistance of PU soles is good, it is still not outstanding compared with some high - end materials. However, the manufacturing process of PU soles can be optimized through HONLED's machines to improve the quality.

5.Q:Is PU sole water resistant?

A:PU soles have certain water resistance. The PU material itself can resist water penetration to a certain extent, and there is usually no problem when it comes into contact with water for a short time. However, its hydrolysis resistance is limited. Prolonged immersion in water or exposure to a high - humidity environment may lead to a decline in the sole's performance, such as aging and deformation.

vertical shoe upper molding machine

Company Profile

As one of top vertical injection molding machine manufacturers,HONLED Plastics Machinery Co., Ltd has been committed in producing high quality pu shoe sole making machine producer since its foundation at 1998. Our company occupies 8000M with the capacity of 1000 sets per year of small plastic injection molding machine, the clamping force from 30T to 1000T.And our company have passed IS09002 certification and all of our plastic shoe making machine have got CE certification.Now we have served severalthousand domestic customers and exported to more than 30 countries.
