HYJ-1000 100 Ton Horizontal Automatic Injection Molding Machine

The HONLED HYJ-1000 fully automatic horizontal injection molding machine is equipped with an intelligent control system. With a clamping force of 1000KN and an injection pressure of 203Mpa, it can precisely mold automotive and home appliance components. As a horizontal molding machine with high cost-effectiveness, it uses a wear-resistant screw and an intelligent temperature control module, supports the rapid switching of precision molds, and is equipped with an automatic part removal system to increase the production capacity by 30%. This automatic injection machine, with its modular design and reasonable molding machine price, provides an efficient horizontal molding solution for standardized products such as plastic containers.

Inquire Now

Category:Horizontal Injection machine

Product Detail

Product Description

The HYJ-1000 Horizontal Injection Molding Machine is a high performance industrial equipment used in a wide range of production lines and manufacturing fields. It has stable and reliable performance, enabling automated operation and precision machining. The equipment is made of advanced technology and materials, has the characteristics of wear resistance and corrosion resistance, and has a long service life. At the same time, the HYJ-1000 also has an intelligent control system, which is easy to operate and easy to maintain. This equipment plays an important role in improving production efficiency, reducing costs and ensuring product quality, and has broad market prospects in industrial production.

Technical Parameter

Item		HYJ-1000
INJECTION UNIT		A	B	C
Screw diameter	mm	32	35	38
Screw L/D ratio	L/D	23	20	18.4
Shot volume	cm³	1343	160.7	189.4
Shot weight(ps)	g	122.2	146.2	172.4
Injection pressure	Mpa	203.1	169.8	144.0
Injection rate(ps)	g/s	105.0	125.6	148.1
Screw stroke	mm	167
Screw speed(stepless)	r/min	253.3
CLAMPING UNIT
Clamping force	KN	1000
Opening stroke	mm	320
Opening stroke	mm×mm	360×360
Opening stroke	mm	350
Opening stroke	mm	150
Opening stroke	mm	90
OTHERS
Hydraulic system pressure	KW	18.5

Finished Product Display

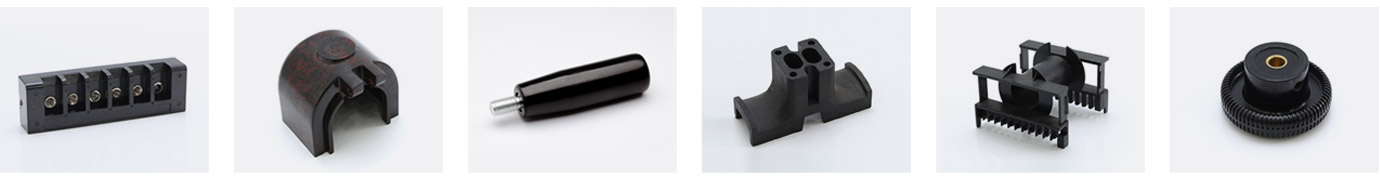

Finished Product by thermoset injection molding machine

Certification

FAQ

1.Q:What is a horizontal injection molding machine?

A:The Horizontal Injection Molding Machine is an injection molding equipment in which the injection device and the clamping device are horizontally arranged, and the mold opens and closes in the horizontal direction. Its body is low and the center of gravity is stable. The products can automatically fall off by gravity, making it suitable for automated mass production. It is widely used in the fields of large parts such as automotive components and daily necessities. Compared with vertical models, it is more convenient to maintain and has higher long-term cost-effectiveness.

2.Q:What is the difference between vertical and horizontal injection molding machine?

A:The main difference between vertical and horizontal injection molding machine is the structure layout and application scenario: the vertical injection molding machine is an injection device and a clamping device arranged vertically. It has a small footprint, whichis suitable for the production of precision small parts or insert-type products. The horizontal injection molding machine is horizontal laid out, fully automated, convenient maintenance, and is suitable for the large-scale production of large parts. The vertical injection molding machine has a better resistance to seismic performance, and the horizontal injection molding machine has a higher long-term cost performance.

3.Q:How much does an injection mold machine cost?

A:The price of an injection molding machine specifically depends on the equipment specifications (clamping force, injection volume), the degree of automation, and the differences in brand technology. The cost of small standard models is relatively low, while the prices of large high-precision or multi-color models increase significantly. It is recommended to contact HONLED for an accurate quotation according to your needs.

Company Profile

As a top injection molding machine supplier,HONLED Plastics Machinery Co., Ltd has been committed in producing high quality thermoset molding machine producer since its foundation at 1998. Our company occupies 8000M with the capacity of 1000 sets per year of injection machine, the clamping force from 30T to 1000T.

And our company have passed IS09002 certification and all of our machine have got CE certification.
Now we have served severalthousand domestic customers and exported to more than 30 countries.

Why Do Customers Choose OurHorizontal Injection Machine?

Professional sales service
