The professional Shoe Sole Injection Molding Machine is engineered for manufacturing premium single-color and dual-color outsoles for high-end fashion shoes, sports shoes luxury leather footwear, and designer-grade soles.

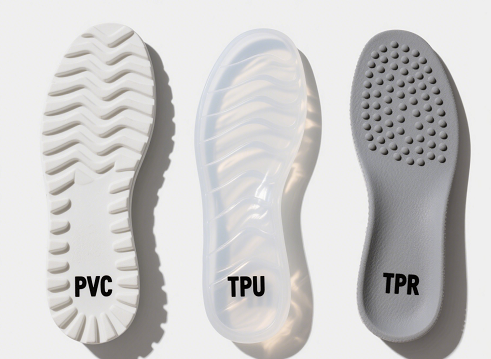

This Shoe Sole Injection Molding Machine is suitable for all kinds of thermoplastic raw materials,foaming or non-foaming,such as TPR,TPU,PVC etc.
HONLED provide a full range of custom solutions for Shoe Sole Injection Molding Machine for PVC TPU TPR Shoe Sole, ensuring excellent product quality and performance.
◆Leading cost-performance ratio, customization cost is 30%+ lower than European and American brands
◆Vertical precision structure, template parallelism ≤ 0.02mm
◆15-minute ultra-fast mold change, daily production capacity per mold increased by 20%
◆Certified by international standards such as CE/ISO, compatible with dual voltage
◆7×24h remote service, 1-year warranty for key components
Shoe Sole Injection Molding Machine Parameter
Name | HYD tpu sole injection machine |
Screw Diameter(mm) | 45/50/55 |
Theoretical Shot Volume(cm3) | 275/325/420 |
Injection Rate(cm3/S) | 180 |
Injection weigh(g) | 260/310/400 |
Injection pressure(kgf/cm2) | 1500 |
Clamping Type | Double Elbow |
Ejection Stroke(mm) | 100 |
Clamping Force(ton) | 128 |
Max.Mould Plate Stroke(mm) | 350 |
Mold Thicknes(mm) | 430 |
Distance Between Tie Bare(mm) | 460x360 |
Platen Size(mm) | 660x560 |
Heating Power(kw) | 6.8 |
Pump Motor Power(kw) | 11-13 |
Machine Weigh(ton) | 2.8 |
Machine Dimension(m) | 2.1x1.3x3.1 |
Upgrade your footwear production with our high-performance Shoe Sole Injection Molding Machine, expertly engineered for manufacturing single-color and dual-color outsoles for fashion shoes, leather shoes, sandals, and more. Compatible with a wide range of thermoplastic materials—including TPR, TPU, PVC, TR, and foaming/non-foaming compounds—this machine ensures superior sole quality for diverse footwear needs.
Key Features & Advantages of Shoe Sole Injection Molding Machine:
Precision Hydraulic Control ：Independent oil system with fast speed, accurate pressure, and stable performance, guaranteeing high-quality, defect-free soles.
Intelligent Mold Protection：Two-step mold closing and injection pressure control prevent mold damage while optimizing material flow.
Dual Proportional Pressure & Flow Control ：Customize pressure, speed, and timing for each mold, enabling multi-model production in a single cycle for maximum efficiency.
Fully Automated PLC Operation ：User-friendly touchscreen interface with programmable settings for consistent, error-free production.
Energy-Efficient & Low Maintenance ：Advanced design reduces power consumption and downtime, boosting long-term cost savings.
Certifications
Why Choose HONLED Customization?
Tailored to Your Needs: From athletic shoes to industrial safety footwear, our injection molding machines can be customized in size, capacity, and automation level.
Global Service: Exported to 30+ countries. 24/7 remote technical support and on-site training available.
Certified Quality: CE and ISO9001 certified for safe, reliable, and energy-saving production.
FAQ
Q: Can you customize the injection molding machine for my specific shoe design?
A: Yes, we offer full customization, from mold size to injection system and automation modules.
Q: Is daily equipment maintenance troublesome?
A: The shoe injection molding machine uses wear-resistant alloy components and comes standard with an automatic lubrication system. Daily maintenance only requires basic cleaning, reducing maintenance costs by 60%.
Q: Can it produce PVC/TPU shoe uppers with different hardness levels?
A: It supports hardness adjustment from 0-90A. Through intelligent temperature control and preset pressure parameters, the shoe molding machine can adapt to materials ranging from soft children's shoe uppers to hard safety shoe uppers with one button.
Q: How efficient is mold changing for small-batch orders?
A: Equipped with a 15-minute ultra-fast mold change system, the shoe injection molding machine supports quick switching between single-color, double-color, and structural molds, reducing the production cycle for small orders by 50%.
Q: Does the equipment comply with European and American safety certifications?
A: It is dual-certified by CE and ISO. The shoe molding machine is equipped with an overload protection device, ensuring compliant and worry-free production.
Company Profile
Since 1998, HONLED Plastics Machinery Co., Ltd. has specialized in manufacturing high-precision customized vertical PVC/TPU shoe injection molding machines, establishing itself as a leading global manufacturer. Our 8,000-square-meter facility annually produces over 1,000 units, offering clamping forces ranging from 30T to 1000T for shoe molding machine applications, spanning from children's shoes to industrial footwear. With ISO and CE certifications, our shoe mold machine solutions have empowered more than 5,000 domestic clients and over 30 export markets, delivering reliable and flexible shoe upper production for diverse brands.
Why Do Customers Choose Our Shoe Molding Machine?
Professional sales service
You can purchase our shoe molding machine by phone. Our company has a dedicated sales team to serve you.
Procurement plan evaluation
Conduct professional assessments of customer situations and recommend suitable products based on needs.
Product usage training
Provide one-stop services such as shoe mold machine usage training and maintenance.
Pay attention to product quality
Nationwide warranty for 12 months, free parts replacement during the warranty period.
Now we have served severalthousand domestic customers and exported to more than 30 countries.
