Product Features

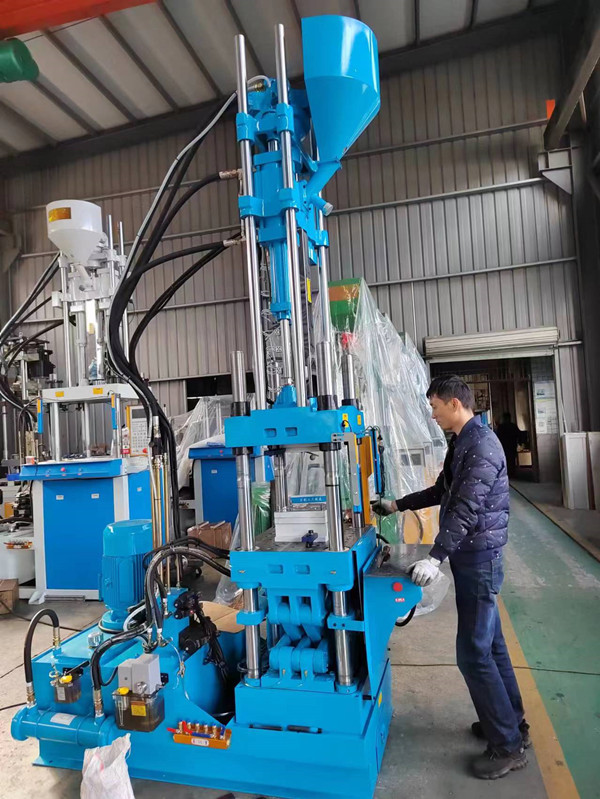

Optimized Energy Efficiency:The 100 ton injection molding machine utilizes a servo motor drive combined with Double Elbow Clamping Type technology, coupled with an 11kW pump motor, resulting in a 30%-50% reduction in energy consumption compared to traditional models. This significantly optimizes the lifecycle cost of the plastic injection molding machine. The 6.3kW high-frequency heating system offers precise temperature control, shortening the molding cycle by 15%.

Compact & Versatile: With an ultra-compact footprint of 1.58×1×2.9 meters and a total weight of 2 tons, this 100 ton injection molding machine is designed to support laboratory, medical consumables, and small-batch production scenarios, thereby redefining the flexible application boundaries of the small plastic injection molding machine.

Precision & Stability:With a high injection rate of 150 cm³/s and an injection pressure of 1500 kgf/cm², coupled with a 42mm large-diameter screw, this 100 ton injection molding machine can consistently mold complex and precise components weighing up to 200g, meeting ISO9001 production standards.

Mold Flexibility:Supporting a maximum mold thickness of 380mm and a tie-bar spacing of 420×290mm, the 100 ton injection molding machine is compatible with molds for medium-sized products such as automotive light covers and household appliance housings, addressing the mainstream industrial demands of the 100-ton injection molding machine.

Intelligent Safety:Equipped with full-surround metal protective shielding and safety sensors as standard, the 100 ton injection molding machine features a mold-opening emergency stop response time of less than 0.1 seconds, in compliance with CE Machinery Directive safety standards, effectively reducing operational risks.

Technical Parameters

Certification

FAQ

1.Q:What are the two types of injection molding machines?

A:There are two main types of injection molds: vertical molds and horizontal molds. Usually the injection and clamping device of vertical injection molding machines are vertically arranged. They're small in footprint and have convenient insert operations that make them suitable for producing precision small parts (like electronic components and medical devices). Horizontal injection molding machines are positioned horizontally. It has high automation degree and convenient maintenance, which is suitable for mass production of large parts, such as automotive components and daily necessities.

2.Q:What is the difference between vertical and horizontal injection molding machine?

A:The main difference between vertical and horizontal injection molding machine is the structure layout and application scenario: the vertical injection molding machine is an injection device and a clamping device arranged vertically. It has a small footprint, whichis suitable for the production of precision small parts or insert-type products. The horizontal injection molding machine is horizontal laid out, fully automated, convenient maintenance, and is suitable for the large-scale production of large parts. The vertical injection molding machine has a better resistance to seismic performance, and the horizontal injection molding machine has a higher long-term cost performance.

3.Q:What is a vertical injection molding machine?

A:The Vertical Injection Molding Machine is an injection molding equipment in which the injection device and the clamping device are vertically arranged. It is specially used for the production of insert-type products, precision small-sized products or thin-walled products. Its mold opens and closes vertically, saving space and facilitating manual or automated insert operations. It has the characteristics of energy conservation, high efficiency and high precision, and is suitable for fields such as electronic components and medical devices,To learn more,click here>>!

4.Q:How much does an injection mold machine cost?

A:The price of an injection molding machine specifically depends on the equipment specifications (clamping force, injection volume), the degree of automation, and the differences in brand technology. The cost of small standard models is relatively low, while the prices of large high-precision or multi-color models increase significantly. It is recommended to contact HONLED for an accurate quotation according to your needs.

Why Do Customers Choose Our Vertical Injection Molding Machine?
