The HONLED small plastic moulding machine is highly efficient and precise, suitable for manufacturing miniature parts in the electronics and medical industries. It is backed by the technologies of professional plastic injection machine manufacturers.

Product Features

Energy-saving, High-precision Injection System

HONLED small plastic molding machine has screw of different specifications (35/38/42MM).Theoretical injection volume is 173-249 cm³, and the maximum injection rate is 141 cm³/s. —Under a screw speed 200 rpm and barrel heating power of 5.9 kW, high-precision plastic melting and filling can be completed rapidly. The 120T clamping force guarantees the stable molding of complex miniature molds while meeting the production needs of precision parts such as electronic components and medical catheters. It is a new type of energy-saving type small plastic injection machine in the plastic industry.

Flexible Mold Adaptation Design

The open-structure design accommodates various production scenarios. Mold opening stroke 300mm; mold height 200~600mm (the minimum value was 200/300 mm, and the maximum value was 500/600 mm) Its tie-bar spacing is 610x400mm and features a slide plate size of 890x680mm giving it flexible mountability for small multi-cavity molds. The ejection force is upto 4T, the ejector pin stroke can reach 75mm, the single ejector pin (1PC) configuration, to ensure the efficient precise demoulding, help small injection machine users to rapidly replace production tasks.

Small and Energy Saving Structure

The machine's overall dimensions are just 2.4x1. 5x3. 6m and weight is 6.5T, and the compact design helps it to be used in narrow workshop space. With a 160 kgf/cm² hydraulic system, it keeps the stable output while saving the energy, and increases the daily production by 30%. HONLED is a professional small plastic moulding machine manufacturer with expertise in vertical technology, the ratio of equipment footprint to energy consumption is optimized to provide an advantageous economic solution to small-to-medium-batch production in many industries including auto parts, daily necessaries and so on.

Intelligent Hydraulic Drive

All clamping, injection and ejection actions are controlled with high precision through 160 kgf/cm² high-pressure hydraulic system. It guarantees the equability of molding cycle along with digital pressure feedback. The implementation of this track technology perfectly meets the requirements of the continuous production of small precision plastic parts, achieving near-zero waste of material and improving the yield rate, which also embodies the core advantages of HONLED small plastic injection machine in industrial automation field.

Technical Parameters

Product Application

Electronic component manufacturing

With a high-speed injection rate of 141 cm³/s and a clamping force of 120T, the HONLED Small Plastic Molding Machine precisely molds precision electronic components such as miniature connectors and sensor housings. It ensures that the dimensional tolerance is controlled within ±0.02mm, meeting the high-precision requirements of the electronics industry.

Medical Device Production

It is suitable for the manufacturing of sterile plastic parts such as medical catheters and syringe accessories. The equipment is equipped with a 5.9kW barrel heating system and a 160 kgf/cm² hydraulic drive to ensure uniform material melting and stable molding, meeting medical-grade production standards.

automotive parts processing

Specifically designed for small automotive parts (such as buttons and fasteners), the 11kW energy-saving motor and the 6.5T compact structure are suitable for efficient workshop production. The daily production capacity is increased by 30%, helping the automotive supply chain to reduce costs and improve efficiency.

Daily Necessities And Consumer Goods Manufacturing

From toothbrush handles to toy parts, the HONLED Small Plastic Molding Machine supports the rapid switching of multi-cavity molds. The ejection force of 4T and the ejector pin stroke of 75mm ensure efficient demoulding, meeting the diverse production requirements of consumer goods.

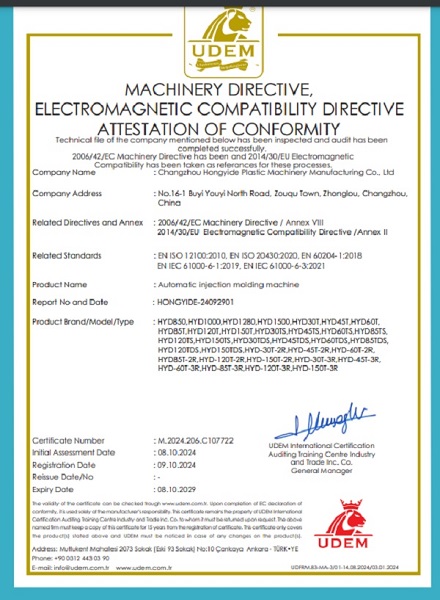

Certification

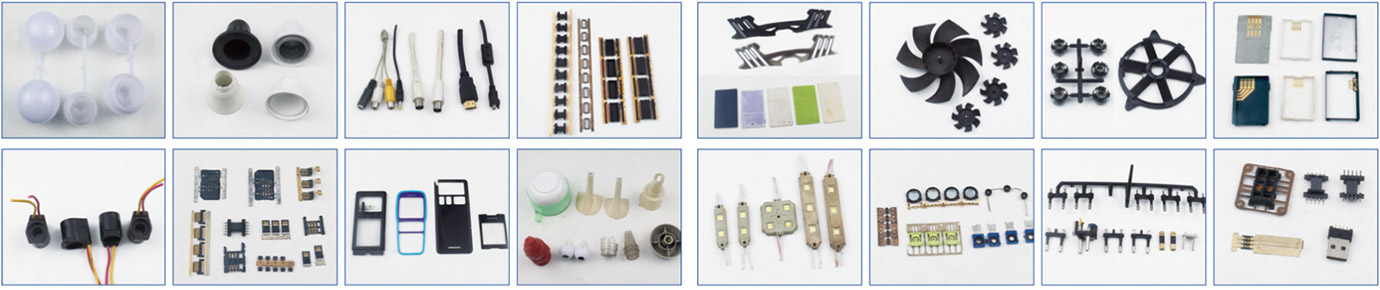

Finished Product Display

Why Do Customers Choose Our Vertical Plastic Injection Machine?
