Oil Cylinder Injection Molding Machine

Technical Parameters

Machine Type

HYD120

HYD150

HYD210

Screw diameter

mm

35

38

42

38

42

46

42

46

50

Theoretical injection volume

cm³

173

204

249

227

277

332

305

365

432

Shot weight

g(ps)

163

193

236

214

262

314

287

345

408

Injection pressure

kgf/cm²

959

1662

1361

2011

646

372

1959

1633

1382

Injection rate

cm³/sec

98

115

141

118

44

173

160

193

228

Screw speed

rpm

200

200

200

Barrel heating power

kw

5.9

6.55

7.45

Clamping force

T

120

150

210

Open stroke

mm

300

300

350

Min mold height

mm

200/300

200/350

250/350

Max mold height

mm

500/600

550/650

600/700

Slide plater size

mm

890x680

960x930

1050x1000

Space between tie-bar

mm

610x400

660x630

720x670

Eject force

T

4

5.4

7

Ejector stroke

mm

75

80

100

Ejector pin NO

pc

1

1

1

Hydraulic pressure

kgf/cm²

160

160

160

Motor power

kw

11

15

18.5

Mechine size(Lx WxH)

m

2.4x1.5x3.6

2.5x1.65x3.8

2.7x1.7x4.3

Machine weight

T

6.5

7.3

8.85



Machine Type

HYD300

HYD450

HYD600

HYD850

Screw diameter

mm

25

28

28

32

30

32

35

32

35

38

Theoretical injection volume

cm³

59

74

80

104

106

120

144

129

154

181

Shot weight

g(ps)

55

70

75

99

100

114

136

122

145

171

Injection pressure

kgf/cm²

1850

1475

1959

1450

2160

1898

587

2039

704

1446

Injection rate

cm³/sec

42

58

60

79

65

74

88

80

96

113

Screw speed

rpm

180

200

200

200

Barrel heating power

kw

2.9

3.6

4.2

5.25

Clamping force

T

30

45

60

85

Open stroke

mm

180

200

250

250

Min mold height

mm

100/180

150/250

150/250

170/300

Max mold height

mm

300/380

375/475

400/500

450/550

Slide plater size

mm

535x405

610x460

680x540

740x570

Space between tie-bar

mm

370x230

410x250

460x310

510x340

Eject force

T

1.3

1.3

2.2

2.2

Ejector stroke

mm

40

40

40

65

Ejector pin NO

pc

1

1

1

1

Hydraulic pressure

kgf/cm²

160

160

160

160

Motor power

kw

4

5.5

7.5

11

Mechine size(Lx WxH)

m

1.35x1x2.3

1.4x1.1x2.4

1.55x1.2x2.8

1.75 x1.2x2.8

Machine weight

T

1

1.5

2.1

2.1

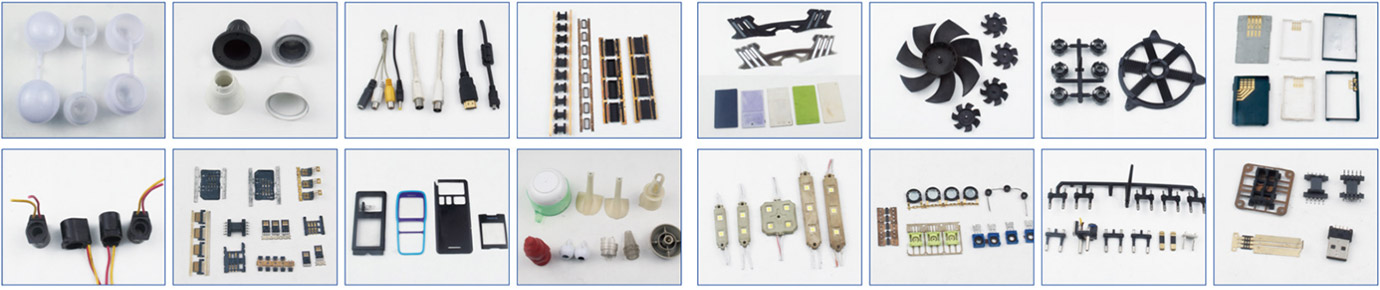

Finished Product Display




  • HYD-30 30 Ton Vertical Small Plastic Molding Machine

    HYD-30

    Our plastic molding machines offer precision, energy efficiency, and customizable designs to meet diverse production needs. Ideal for small-scale projects, durable, and backed by global shipping support.Customization Capability:Tailored to Specific RequirementsTheoretical Shot Volume(cm3/S) : 5...
    Immediately consult
    Add to cart

  • HYD-45 45 Ton Vertical Plastic Injection Moulding Machine

    HYD-45

    Streamline your production with HONLED's vertical plastic injection moulding machines, engineered for compact workspaces and precision. Customization Capability:Tailored to Specific RequirementsTheoretical Shot Volume(cm3/S) : 80/104Clamping Force(T): 45Injection Rate(cm3/S): 60/7...
    Immediately consult
    Add to cart

  • HYD-60 60 Ton Vertical Injection Molding Machine

    HYD-60

    Maximize ROI with HONLED's 60 ton injection molding machines — engineered for heavy-duty production, energy efficiency, and precision. Customization Capability:Tailored to Specific RequirementsTheoretical Shot Volume(cm3/S) : 106/120/144Clamping Force(T): 60Injection Rate(cm3/S):&...
    Immediately consult
    Add to cart

  • HYD-85 85 Ton Vertical Small Plastic Molding Equipment

    HYD-85

    From small plastic molding prototypes to high-volume production with 85 ton injection molding machines, HONLED delivers precision plastic molding equipment.Customization Capability:Tailored to Specific RequirementsTheoretical Shot Volume(cm3/S) : 129/154/181Clamping Force(T): 85(also suita...
    Immediately consult
    Add to cart

  • HYD-120 120 Ton Vertical Custom PVC Injection Molding Machine

    HYD-120

    Engineered for versatility, HONLED's PVC injection molding machines handle rigid and flexible materials with precision. Our custom molding machines adapt to unique designs, while 120-ton injection molding machines offer heavy-duty performance at competitive prices.Customization Capability:Tailor...
    Immediately consult
    Add to cart

  • HYD-150 150 Ton High Pressure Hydraulic Injection Moulding Machine

    HYD-150

    Engineered for precision and durability, HONLED's high pressure injection molding machines deliver complex part accuracy, while hydraulic injection molding machines ensure stable heavy-duty output.Customization Capability:Tailored to Specific RequirementsTheoretical Shot Volume(cm3/S) : 227...
    Immediately consult
    Add to cart

  • HYD-1200 120 Ton Vertical Small Plastic Molding Machine

    HYD-1200

    Empower small-scale production with HONLED's small plastic molding machines, designed for compact spaces and cost-effective output. Customization Capability:Tailored to Specific RequirementsTheoretical Shot Volume(cm3/S) : 173/204/249Clamping Force(T): 120Injection Rate(cm3/S):&nb...
    Immediately consult
    Add to cart

  • HYD-210 210 Ton Vertical All Electric Plastic Injection Molding Machiney

    HYD-210

    Revolutionize production with HONLED's all electric plastic injection molding machines, combining energy efficiency, ±0.02mm precision, and silent operation.Customization Capability:Tailored to Specific RequirementsTheoretical Shot Volume(cm3/S) : 305/365/432Clamping Force(T): 210(also...
    Immediately consult
    Add to cart

  • HYD-30 30 Ton Vertical Insert Moulding Machine

    HYD-30

    Specializing in precision insert moulding machines for multi-material components, HONLED's vertical insert moulding machines save floor space while ensuring ±0.05mm accuracy.Customization Capability:Tailored to Specific RequirementsTheoretical Shot Volume(cm3/S) : 59/74Clamping Force(T):&nb...
    Immediately consult
    Add to cart
