0Product advantages
The sliding plate and base of HONLED double slide injection molding machine are made of cast iron. The sliding system is equipped with an automatic lubrication device to reduce abrasive wear, while steel-reinforced isolation at connection points ensures minimal deformation.
The ejector unit of HONLED double slide injection molding machine is compatible with different slide plates. Parameters including ejection stroke, ejection force, ejection speed, and ejection time can be preset according to operational demands.
Single-platen injection molding machine: It adopts ADOPI (Advanced Bidirectional Platen Integration) technology to achieve front-back sequential sliding, or uses an ICR (Independent Core Retraction) system to coordinate with right-side reciprocating sliding. The integrated pick-and-place device ensures high safety and improves efficiency.
Double Slide Injection Molding Machine: With a design of alternating left-right platen sliding, the synchronous pick-and-place device guarantees safety and increases production capacity by 30%-40% compared to traditional models.
We can supply the technique of automatic double slide injection molding machine production line, greatly reducing the human resource cost.
Technical Parameters
Machine Type | Unit | HYD300(S/DS) | HYD450(S/DS) | HYD600(S/DS) | HYD850(S/DS) | HYD1200(S/DS) | HYD1500(S/DS) | HYD2100(S/DS) | ||||||||||||
Screw diameter | mm | 25 | 28 | 28 | 32 | 30 | 32 | 35 | 32 | 35 | 38 | 35 | 38 | 42 | 38 | 42 | 46 | 42 | 46 | 50 |
Theoretical injection volume | cm³ | 59 | 74 | 80 | 104 | 106 | 120 | 144 | 129 | 154 | 181 | 173 | 204 | 249 | 227 | 277 | 332 | 305 | 365 | 432 |
Shot weight | g(ps) | 55 | 70 | 75 | 99 | 100 | 114 | 136 | 122 | 145 | 171 | 163 | 193 | 236 | 214 | 262 | 314 | 287 | 345 | 408 |
Injection pressure | kgf/cm² | 1850 | 1475 | 1959 | 1450 | 2160 | 1898 | 587 | 2039 | 1704 | 1446 | 959 | 1662 | 1361 | 2011 | 1646 | 372 | 1959 | 1633 | 1382 |
Injection rate | cm³/sec | 42 | 58 | 60 | 79 | 65 | 74 | 88 | 80 | 96 | 113 | 98 | 115 | 141 | 118 | 144 | 173 | 160 | 193 | 228 |
Screw speed | rpm | 180 | 200 | 200 | 200 | 200 | 200 | 200 | ||||||||||||
Barrel heating power | kw | 2.9 | 3.6 | 4.2 | 5.25 | 5.9 | 6.55 | 7.45 | ||||||||||||
Clamping force | T | 30 | 45 | 60 | 85 | 120 | 150 | 210 | ||||||||||||
Open stroke | mm | 180 | 200 | 250 | 250 | 300 | 300 | 350 | ||||||||||||
Min mold height | mm | 100/180 | 150/250 | 150/250 | 170/300 | 200/300 | 200/350 | 250/350 | ||||||||||||
Max mold height | mm | 300/380 | 375/475 | 400/500 | 450/550 | 500/600 | 550/650 | 600/700 | ||||||||||||
Slide plater size | mm | 535x405 | 610x460 | 680x540 | 740x570 | 890x680 | 960x930 | 050x1000 | ||||||||||||
Space between tie-bar | mm | 370x230 | 410x250 | 460x310 | 510x340 | 610x400 | 660x630 | 720x670 | ||||||||||||
Eject force | T | 1.3 | 1.3 | 2.2 | 2.2 | 4 | 5.4 | 7 | ||||||||||||
Ejector stroke | mm | 40 | 40 | 40 | 65 | 75 | 80 | 100 | ||||||||||||
Ejector pin NO | pc | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||||||||||
Hydraulic pressure | kgf/cm² | 160 | 160 | 160 | 160 | 160 | 160 | 160 | ||||||||||||
Motor power | kw | 4 | 5.5 | 7.5 | 11 | 11 | 15 | 18.5 | ||||||||||||
Mechine size(Lx WxH) | m | 1.35x1x2.3 | 1.4x1.1x2.4 | 1.55x1.2x2.8 | 1.75x1.2x2.8 | 2.4x1.5x3.6 | 2.5x1.65x3.8 | 2.7x1.7x4.3 | ||||||||||||
Machine weight | T | 1 | 1.5 | 2.1 | 2.1 | 6.5 | 7.3 | 8.85 | ||||||||||||

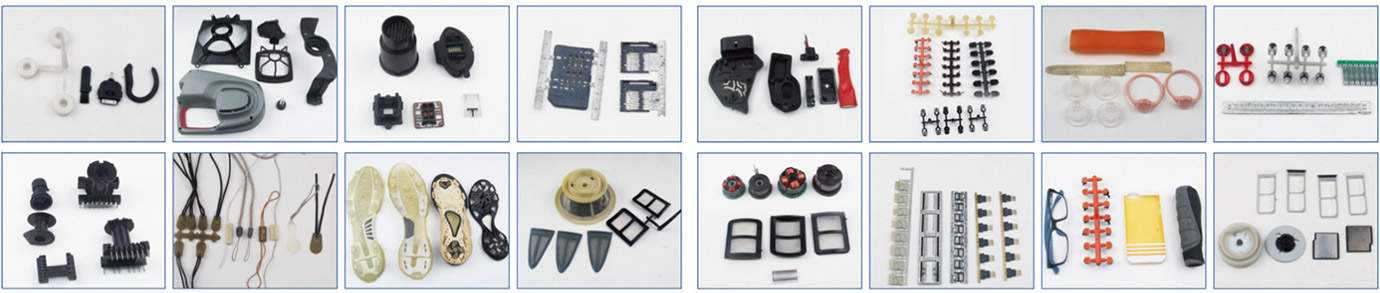

Finished Product Display
HYD-450DS
HYD-600DS
Now we have served severalthousand domestic customers and exported to more than 30 countries.
