HYD-600DS 60 Ton Vertical All Electronic Plastic Injection Moulding Machine

The HONLED® All Electric Injection Moulding Machine delivers ±0.02mm repeat accuracy with servo-driven technology, designed for precision-demanding applications like medical implants, optical lenses, and micro-electronic components. Featuring cast iron construction and auto-lubricated sliding systems, this vertical plastic moulding machine reduces wear by 60% while maintaining<0.5μm deformation via steel-isolated connectors. As a cleanroom-ready electronic injection moulding machine, it achieves 50% energy savings versus hydraulic models (ISO 50001 certified) and supports vertical molding workflows for insert-loaded production. With modular clamping (5-50T) and IoT-enabled process control, manufacturers in 30+ countries trust this all electric injection moulding machine for high-mix, low-volume batches of PEEK, LCP, and biocompatible plastics. Request a demo for FDA/GMP-compliant solutions.

Inquire Now

Category:Vertical Single and Double Slide Injection Molding Machine

Product Detail

Product Features

未标题-2_03.jpg The sliding plate and base is made by cast iron and sliding systemhasautomatic lubrication deviceto reduce abrasive ware and the connect point use steel isolation to ensure little deformation.

未标题-2_03.jpg Ejector unit can match different slide plate. The ejection stroke, ejection force, ejection speed and ejection time can preset according to demands.

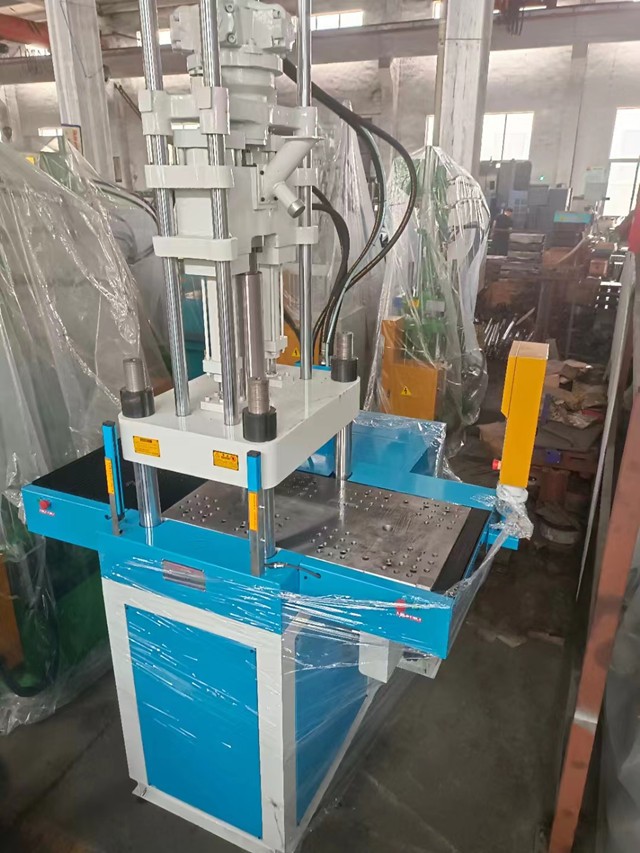

未标题-2_03.jpg Single slide plate: adopt before and after or left and right reciprocating slide , the operation of insert device and fetch device is high safety.

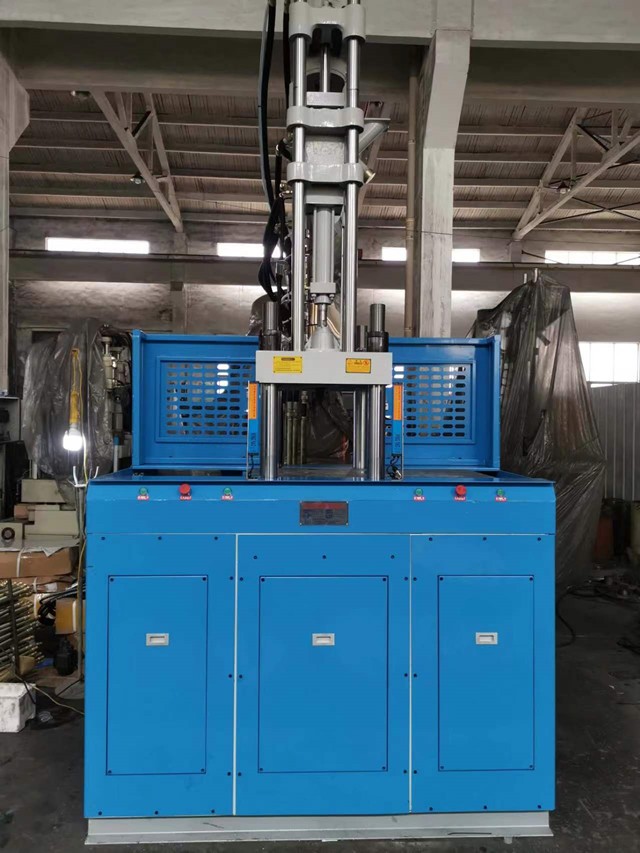

未标题-2_03.jpg Double sliding plate adopt right and left alternatively slide, the operationof insert device and fetch device is high safety and increasing 30%-40% production capacity

未标题-2_03.jpg We can supply the technique of automatic production line, greatly reducing the human resource cost.

Technical Parameters

Machine Type	Unit	HYD300(S/DS)		HYD450(S/DS)		HYD600(S/DS)			HYD850(S/DS)			HYD1200(S/DS)			HYD1500(S/DS)			HYD2100(S/DS)
Screw diameter	mm	25	28	28	32	30	32	35	32	35	38	35	38	42	38	42	46	42	46	50
Theoretical injection volume	cm³	59	74	80	104	106	120	144	129	154	181	173	204	249	227	277	332	305	365	432
Shot weight	g(ps)	55	70	75	99	100	114	136	122	145	171	163	193	236	214	262	314	287	345	408
Injection pressure	kgf/cm²	1850	1475	1959	1450	2160	1898	587	2039	1704	1446	959	1662	1361	2011	1646	372	1959	1633	1382
Injection rate	cm³/sec	42	58	60	79	65	74	88	80	96	113	98	115	141	118	144	173	160	193	228
Screw speed	rpm	180		200		200			200			200			200			200
Barrel heating power	kw	2.9		3.6		4.2			5.25			5.9			6.55			7.45
Clamping force	T	30		45		60			85			120			150			210
Open stroke	mm	180		200		250			250			300			300			350
Min mold height	mm	100/180		150/250		150/250			170/300			200/300			200/350			250/350
Max mold height	mm	300/380		375/475		400/500			450/550			500/600			550/650			600/700
Slide plater size	mm	535x405		610x460		680x540			740x570			890x680			960x930			050x1000
Space between tie-bar	mm	370x230		410x250		460x310			510x340			610x400			660x630			720x670
Eject force	T	1.3		1.3		2.2			2.2			4			5.4			7
Ejector stroke	mm	40		40		40			65			75			80			100
Ejector pin NO	pc	1		1		1			1			1			1			1
Hydraulic pressure	kgf/cm²	160		160		160			160			160			160			160
Motor power	kw	4		5.5		7.5			11			11			15			18.5
Mechine size(Lx WxH)	m	1.35x1x2.3		1.4x1.1x2.4		1.55x1.2x2.8			1.75x1.2x2.8			2.4x1.5x3.6			2.5x1.65x3.8			2.7x1.7x4.3
Machine weight	T	1		1.5		2.1			2.1			6.5			7.3			8.85

Finished Product Display


Certification

FAQ

1.Q:What are the two types of injection molding machines?

A:There are two main types of injection molds: vertical molds and horizontal molds. Usually the injection and clamping device of vertical injection molding machines are vertically arranged. They're small in footprint and have convenient insert operations that make them suitable for producing precision small parts (like electronic components and medical devices). Horizontal injection molding machines are positioned horizontally. It has high automation degree and convenient maintenance, which is suitable for mass production of large parts, such as automotive components and daily necessities.

2.Q:What is the difference between vertical and horizontal injection molding machine?

A:The main difference between vertical and horizontal injection molding machine is the structure layout and application scenario: the vertical injection molding machine is an injection device and a clamping device arranged vertically. It has a small footprint, whichis suitable for the production of precision small parts or insert-type products. The horizontal injection molding machine is horizontal laid out, fully automated, convenient maintenance, and is suitable for the large-scale production of large parts. The vertical injection molding machine has a better resistance to seismic performance, and the horizontal injection molding machine has a higher long-term cost performance.

3.Q:What is a vertical injection molding machine?

A:The Vertical Injection Molding Machine is an injection molding equipment in which the injection device and the clamping device are vertically arranged. It is specially used for the production of insert-type products, precision small-sized products or thin-walled products. Its mold opens and closes vertically, saving space and facilitating manual or automated insert operations. It has the characteristics of energy conservation, high efficiency and high precision, and is suitable for fields such as electronic components and medical devices,To learn more,click here>>!

4.Q:How much does an injection mold machine cost?

A:The price of an injection molding machine specifically depends on the equipment specifications (clamping force, injection volume), the degree of automation, and the differences in brand technology. The cost of small standard models is relatively low, while the prices of large high-precision or multi-color models increase significantly. It is recommended to contact HONLED for an accurate quotation according to your needs.
