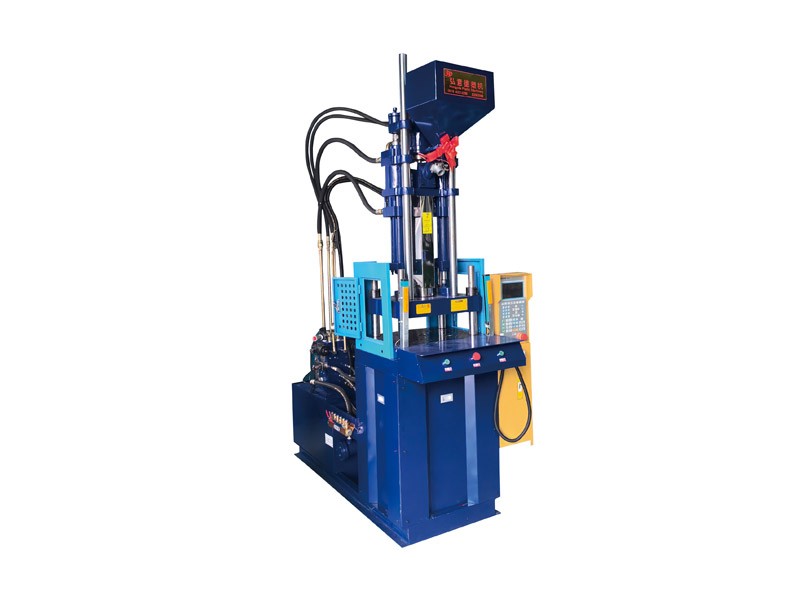

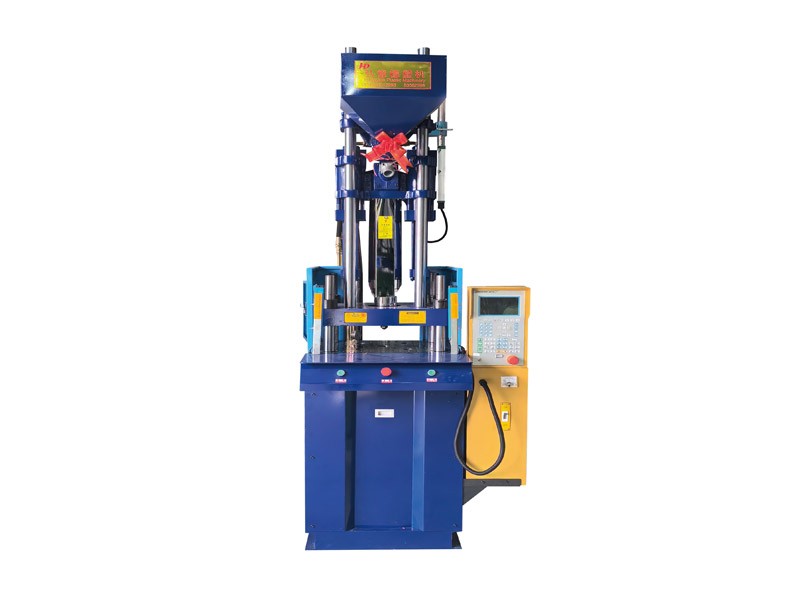

HYD-45 45 Ton Vertical Plastic Injection Moulding Machine

Streamline your production with HONLED's vertical plastic injection moulding machines, engineered for compact workspaces and precision.

Customization Capability:Tailored to Specific Requirements

Theoretical Shot Volume(cm3/S) : 80/104

Clamping Force(T): 45

Injection Rate(cm3/S): 60/79

Certification Standards:CE,ISO9001

Inquire Now

Category:Oil Cylinder Injection Molding Machine

Product Detail

45 ton vertical plastic injection moulding machine

Product Features
The screw diameter of HYD45 Vertical Injection Molding Machine is 28/28 mm, the Theoretical injection Volume is 80/104(cm³) ,the injection rate is 75/99 (cm³/S) , tthe Screw speed is 200 rpm,the Barrel heating power is 3.6 kw, the Clamping force is 45 T,the Open stroke is 200 mm ,the Min mold height is150/250 mm,the Max mold height is 375/475 mm,the Slide plater size is 610x460 mm,the Space between tie-bar is 410x250 mm,the Eject force 1.3 T,the Ejector stroke is 40 mm,the Ejector pin NO is 1 PC,the Hydraulic pressure is 160 kgf/cm²，the Motor power is 5.5 kw,the Mechine size(Lx WxH) is 1.4x1.1x2.4 m,the Machine weight is 1.5T.

Technical Parameters

Machine Type		HYD45
Screw diameter	mm	28	32
Theoretical injection volume	cm³	80	104
Shot weight	g(ps)	75	99
Injection pressure	kgf/cm²	1959	1450
Injection rate	cm³/sec	60	79
Screw speed	rpm	200
Barrel heating power	kw	3.6
Clamping force	T	45
Open stroke	mm	200
Min mold height	mm	150/250
Max mold height	mm	375/475
Slide plater size	mm	610x460
Space between tie-bar	mm	410x250
Eject force	T	1.3
Ejector stroke	mm	40
Ejector pin NO	pc	1
Hydraulic pressure	kgf/cm²	160
Motor power	kw	5.5
Mechine size(Lx WxH)	m	1.4x1.1x2.4
Machine weight	T	1.5

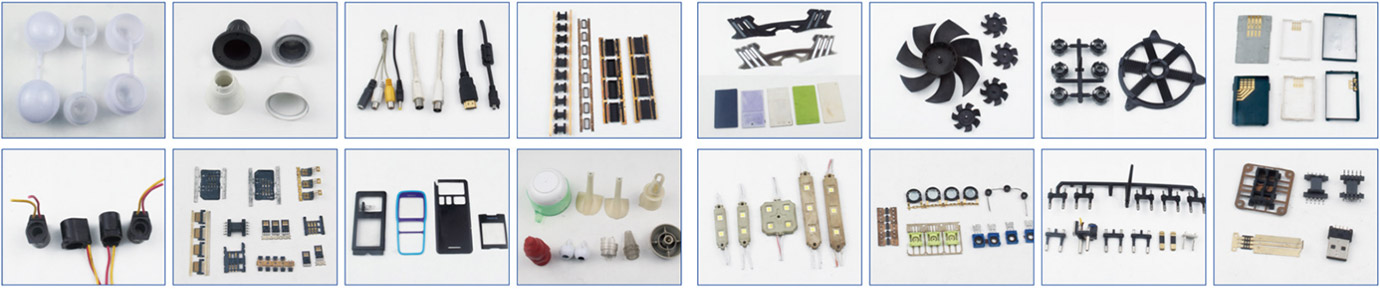

Finished Product Display

Finished Product Display of 45 ton vertical plastic injection moulding machine

Certification

FAQ

1.Q:What are the two types of injection molding machines?

A:There are two main types of injection molds: vertical molds and horizontal molds. Usually the injection and clamping device of vertical injection molding machines are vertically arranged. They're small in footprint and have convenient insert operations that make them suitable for producing precision small parts (like electronic components and medical devices). Horizontal injection molding machines are positioned horizontally. It has high automation degree and convenient maintenance, which is suitable for mass production of large parts, such as automotive components and daily necessities.

2.Q:What is the difference between vertical and horizontal injection molding machine?

A:The main difference between vertical and horizontal injection molding machine is the structure layout and application scenario: the vertical injection molding machine is an injection device and a clamping device arranged vertically. It has a small footprint, whichis suitable for the production of precision small parts or insert-type products. The horizontal injection molding machine is horizontal laid out, fully automated, convenient maintenance, and is suitable for the large-scale production of large parts. The vertical injection molding machine has a better resistance to seismic performance, and the horizontal injection molding machine has a higher long-term cost performance.

3.Q:What is a vertical injection molding machine?

A:The Vertical Injection Molding Machine is an injection molding equipment in which the injection device and the clamping device are vertically arranged. It is specially used for the production of insert-type products, precision small-sized products or thin-walled products. Its mold opens and closes vertically, saving space and facilitating manual or automated insert operations. It has the characteristics of energy conservation, high efficiency and high precision, and is suitable for fields such as electronic components and medical devices,To learn more,click here>>!

4.Q:How much does an injection mold machine cost?

A:The price of an injection molding machine specifically depends on the equipment specifications (clamping force, injection volume), the degree of automation, and the differences in brand technology. The cost of small standard models is relatively low, while the prices of large high-precision or multi-color models increase significantly. It is recommended to contact HONLED for an accurate quotation according to your needs.

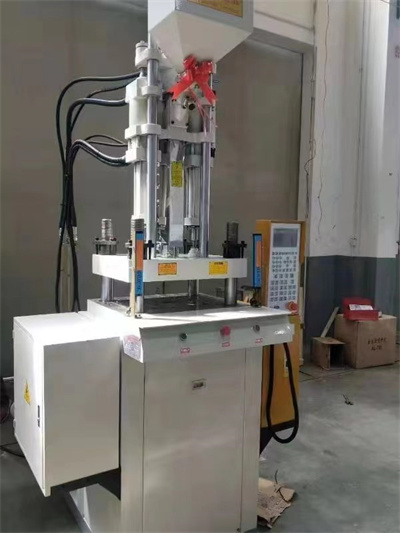

45 ton vertical plastic injection moulding machine
