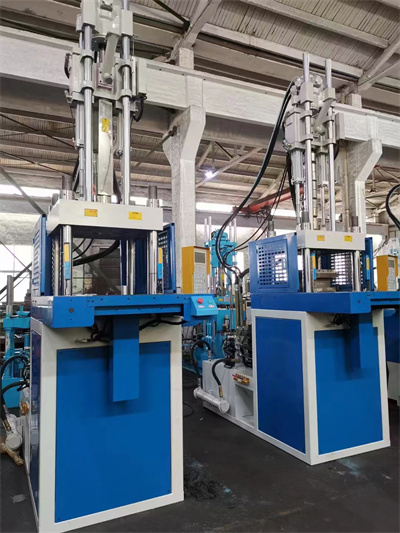

Engineered for precision and durability, HONLED's high pressure injection molding machines deliver complex part accuracy, while hydraulic injection molding machines ensure stable heavy-duty output.
Customization Capability:Tailored to Specific Requirements
Theoretical Shot Volume(cm3/S) : 227/277/332
Clamping Force(T): 150
Injection Rate(cm3/S): 118/44/173
Certification Standards:CE,ISO9001
Product Features
The screw diameter of HYD-150 Vertical Injection Molding Machine is 38/42/46MM, the Theoretical injection Volume is 227/277/332(cm³) ,the injection rate is 118/244/173(cm³/S) , tthe Screw speed is 200rpm,the Barrel heating power is 6.55kw, the Clamping force is 150 T,the Open stroke is 300mm ,the Min mold height is200/350mm,the Max mold height is 550/650mm,the Slide plater size is 960x930mm,the Space between tie-bar is 660x630mm,the Eject force 5.4 T,the Ejector stroke is 75mm,the Ejector pin NO is 1 PC,the Hydraulic pressure is 160 kgf/cm²，the Motor power is11kw,the Mechine size(Lx WxH) is 2.5x1.65x3.8m,the Machine weight is 7.3 T.
Technical Parameters
| Machine Type | HYD150 | |||
Screw diameter | mm | 38 | 42 | 46 |
Theoretical injection volume | cm³ | 227 | 277 | 332 |
Shot weight | g(ps) | 214 | 262 | 314 |
Injection pressure | kgf/cm² | 2011 | 646 | 372 |
Injection rate | cm³/sec | 118 | 44 | 173 |
Screw speed | rpm | 200 | ||
Barrel heating power | kw | 6.55 | ||
Clamping force | T | 150 | ||
Open stroke | mm | 300 | ||
Min mold height | mm | 200/350 | ||
Max mold height | mm | 550/650 | ||
Slide plater size | mm | 960x930 | ||
Space between tie-bar | mm | 660x630 | ||
Eject force | T | 5.4 | ||
Ejector stroke | mm | 80 | ||
Ejector pin NO | pc | 1 | ||
Hydraulic pressure | kgf/cm² | 160 | ||
Motor power | kw | 15 | ||
Mechine size(Lx WxH) | m | 2.5x1.65x3.8 | ||
Machine weight | T | 7.3 | ||
Certification
FAQ
1.Q:What are the two types of injection molding machines?
A:There are two main types of injection molds: vertical molds and horizontal molds. Usually the injection and clamping device of vertical injection molding machines are vertically arranged. They're small in footprint and have convenient insert operations that make them suitable for producing precision small parts (like electronic components and medical devices). Horizontal injection molding machines are positioned horizontally. It has high automation degree and convenient maintenance, which is suitable for mass production of large parts, such as automotive components and daily necessities.
2.Q:What is the difference between vertical and horizontal injection molding machine?
A:The main difference between vertical and horizontal injection molding machine is the structure layout and application scenario: the vertical injection molding machine is an injection device and a clamping device arranged vertically. It has a small footprint, whichis suitable for the production of precision small parts or insert-type products. The horizontal injection molding machine is horizontal laid out, fully automated, convenient maintenance, and is suitable for the large-scale production of large parts. The vertical injection molding machine has a better resistance to seismic performance, and the horizontal injection molding machine has a higher long-term cost performance.
3.Q:What is a vertical injection molding machine?
A:The Vertical Injection Molding Machine is an injection molding equipment in which the injection device and the clamping device are vertically arranged. It is specially used for the production of insert-type products, precision small-sized products or thin-walled products. Its mold opens and closes vertically, saving space and facilitating manual or automated insert operations. It has the characteristics of energy conservation, high efficiency and high precision, and is suitable for fields such as electronic components and medical devices,To learn more,click here>>!
4.Q:How much does an injection mold machine cost?
A:The price of an injection molding machine specifically depends on the equipment specifications (clamping force, injection volume), the degree of automation, and the differences in brand technology. The cost of small standard models is relatively low, while the prices of large high-precision or multi-color models increase significantly. It is recommended to contact HONLED for an accurate quotation according to your needs.
