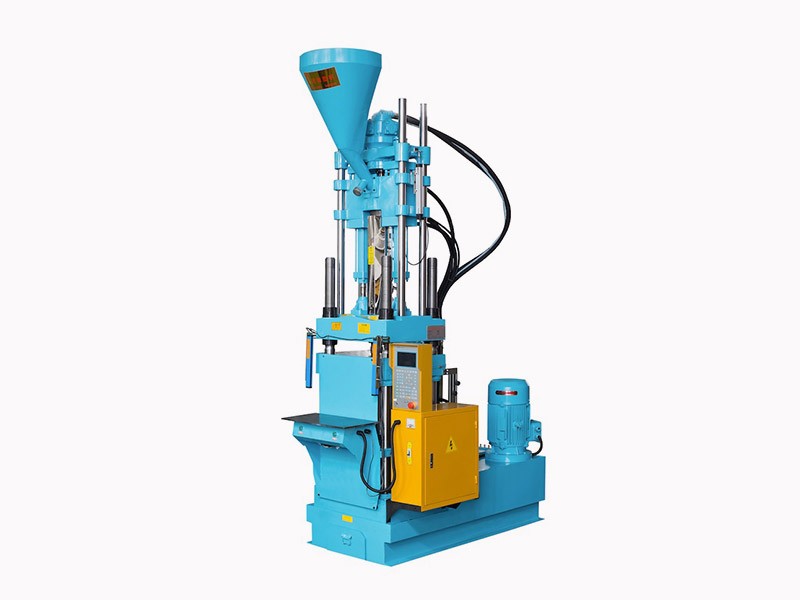

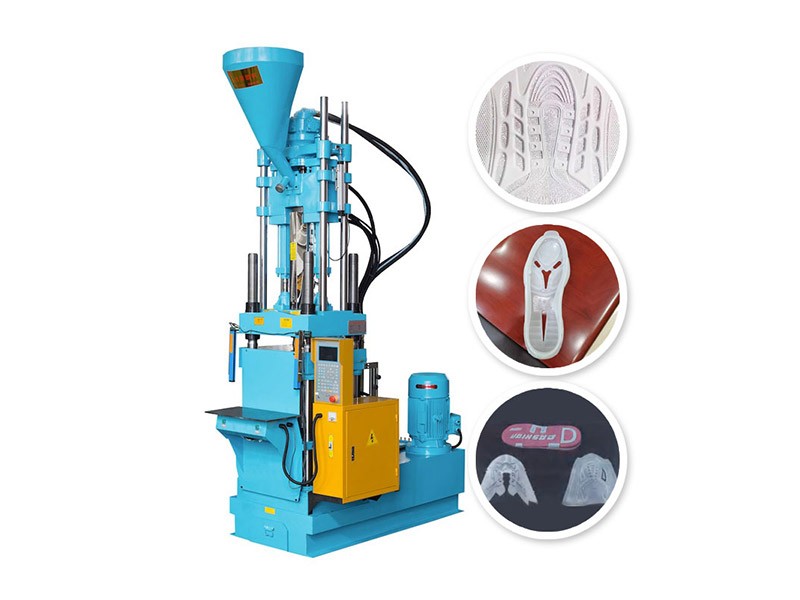

Small Vertical Injection Molding Machine Features

Designed for precision and efficiency, our compact vertical injection molding machine is the ideal solution for specialized manufacturers.

Space-Saving & Cost-Effective: Its compact vertical footprint requires minimal factory space, significantly reducing your overhead and ideal for small to medium-batch production.

Superior for Insert Molding: The open and accessible vertical clamp design, often paired with a rotary table, simplifies manual or automated insert loading. This enables perfect encapsulation of metal parts, electronics, and other components with high precision.

Enhanced Safety & Automation: The vertical design naturally contains mold parting lines within a horizontal plane, reducing the risk of flash ejection. The rotary table allows for simultaneous loading, molding, and unloading, creating a safer and highly efficient continuous workflow.

Robust & Low Maintenance: Built with heavy-duty components and a hardened screw and barrel, this Small Vertical Injection Molding Machine ensures long-term reliability and minimal downtime, protecting your investment.

The screw diameter of HYD-1280 Vertical Injection Molding Machine is 45/50/55MM, the Theoretical Shot Volume(cm³) is 1275/325/420 ,the injection rate is 180(cm³/S) , the injection weight is 260/310/400g, and the Clamping Type is Double Elbow.The Ejection Stroke(mm) is 100,The Clamping Force(ton) is 128，The Max.Mould Plate Stroke(mm) is 350,rhe Mold Thicknes(mm) is 430,The Distance Between Tie Bare(mm) is 460x360,The Platen Size(mm) is 660x560.The Heating Power(kw) is 6.8.The Pump Motor Power(kw) is 11-13,The Machine Weigh(ton) is 2.8,The Machine Dimension(m) Is 2.1x1.3x3.1.

Technical Parameters

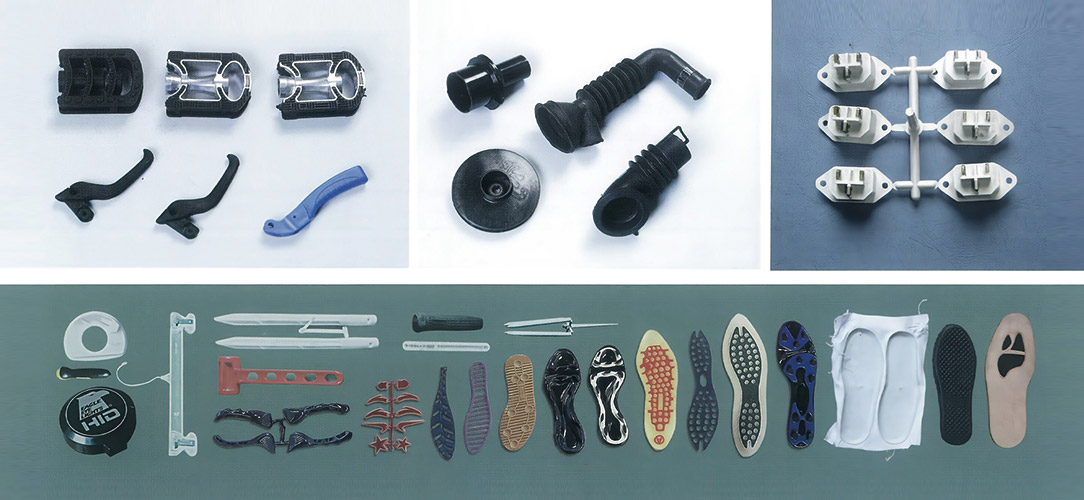

Finished Product Display

Certification

FAQ

1.Q:What are the two types of injection molding machines?

A:There are two main types of injection molds: vertical molds and horizontal molds. Usually the injection and clamping device of vertical injection molding machines are vertically arranged. They're small in footprint and have convenient insert operations that make them suitable for producing precision small parts (like electronic components and medical devices). Horizontal injection molding machines are positioned horizontally. It has high automation degree and convenient maintenance, which is suitable for mass production of large parts, such as automotive components and daily necessities.

2.Q:What is the difference between vertical and horizontal injection molding machine?

A:The main difference between vertical and horizontal injection molding machine is the structure layout and application scenario: the vertical injection molding machine is an injection device and a clamping device arranged vertically. It has a small footprint, whichis suitable for the production of precision small parts or insert-type products. The horizontal injection molding machine is horizontal laid out, fully automated, convenient maintenance, and is suitable for the large-scale production of large parts. The vertical injection molding machine has a better resistance to seismic performance, and the horizontal injection molding machine has a higher long-term cost performance.

3.Q:What is a vertical injection molding machine?

A:The Vertical Injection Molding Machine is an injection molding equipment in which the injection device and the clamping device are vertically arranged. It is specially used for the production of insert-type products, precision small-sized products or thin-walled products. Its mold opens and closes vertically, saving space and facilitating manual or automated insert operations. It has the characteristics of energy conservation, high efficiency and high precision, and is suitable for fields such as electronic components and medical devices,To learn more,click here>>!

4.Q:How much does an injection mold machine cost?

A:The price of an injection molding machine specifically depends on the equipment specifications (clamping force, injection volume), the degree of automation, and the differences in brand technology. The cost of small standard models is relatively low, while the prices of large high-precision or multi-color models increase significantly. It is recommended to contact HONLED for an accurate quotation according to your needs.
