Vertical Rotary Table Injection Molding Machine for Hardware Fitting

This vertical rotary table injection molding machine is engineered for the high-efficiency and precise production of hardware fittings. Its core advantage lies in the multi-station rotary system, which enables the simultaneous operation of insert loading, injection molding, and part ejection. This transforms intermittent processes into a continuous workflow, significantly boosting productivity compared to conventional machines. Ideal for components like faucet parts, door lock assemblies, and electrical hardware requiring metal-plastic integration.

Inquire Now

Category:Vertical Rotary Platen Injection Molding Machine

Product Detail

HYD 600(2R) 60 Ton Vertical Rotary Table Injection Molding Machine for Hardware Fitting

Key Advantages :

Multi-Station Synchronization, Doubled Efficiency
The unique rotary table design of this vertical injection molding machine with rotary table enables simultaneous insert loading, part removal, and injection molding, eliminating idle time and dramatically increasing output.

Heavy-Duty Construction, Extended Lifespan
High-precision platens, heavy-duty tie-bars, and low-pressure mold protection work in synergy to greatly extend the service life of both the machine and your molds, making this rotary injection molding machine a long-term, cost-effective investment.

Precision Insert Molding, Zero Defects
The vertical direct hydraulic clamping system ensures accurate alignment and is ideally suited for insert molding, guaranteeing strong, flawless metal-to-plastic bonds and superior yield rates.

Hardened Core Components, Built to Last
Nitride and NIP/Nitroflon coated screws and barrels offer superior resistance to acid/alkaline corrosion and wear, ensuring the core of this vertical injection molding machine with rotary table performs reliably even in demanding production environments.

Intelligent Energy Savings, Green Manufacturing
Equipped with a standard variable pump system that reduces energy consumption by 30%-50%, this rotary injection molding machine directly cuts your operational costs and supports sustainable production.

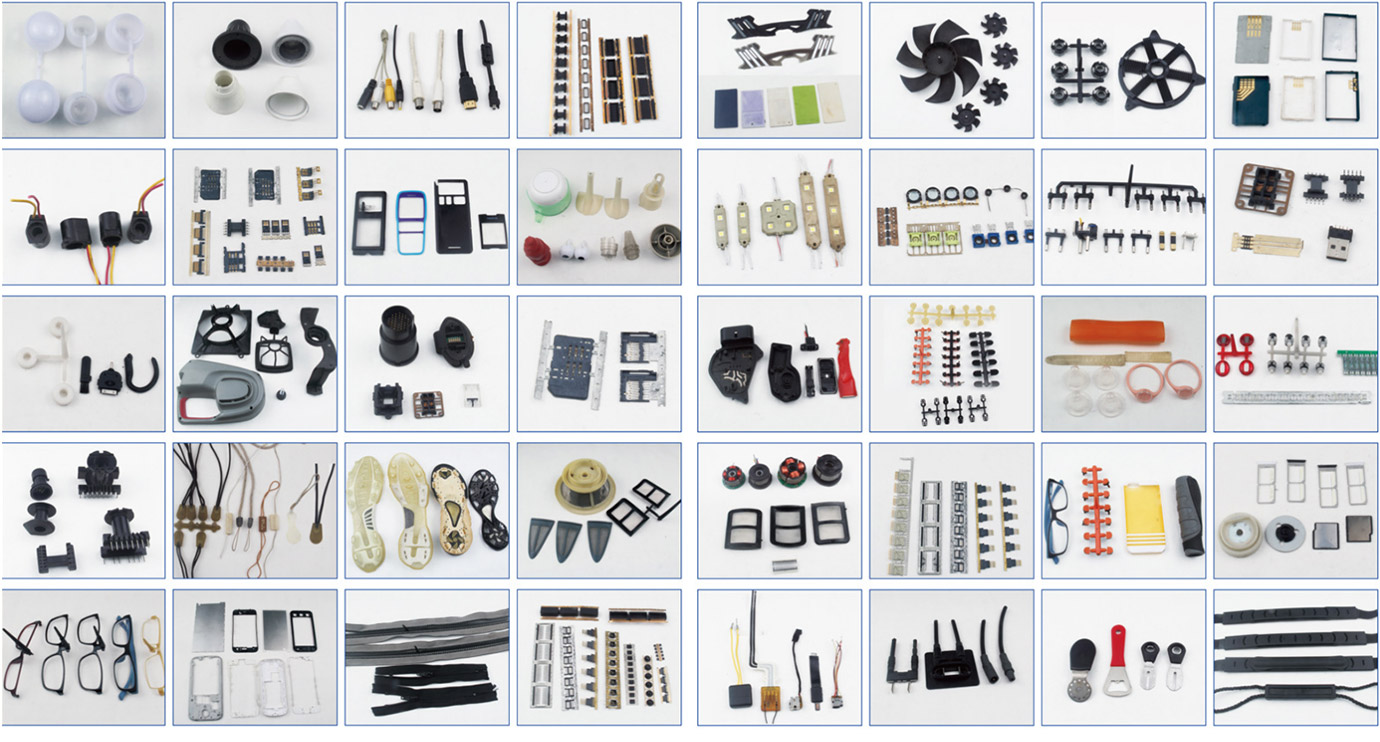

Applications:

Automotive: Lamp reflectors, large hood/door parts, electric heating boxes, horn boxes, large lamp housings.

Precision Electronics: Circuit breaker housings, motor shells, printer/copier components, medical equipment enclosures.

Electrical Components: Coil encapsulation parts, microwave/iron shells.

Daily Hardware: Faucet components, door lock assemblies, and various metal-plastic composite fittings

HYD 600(2R) 60 Ton Vertical Rotary Table Injection Molding Machine for Hardware Fitting

Technical Parameters

Machine Type	Unit	HYD600(2R)
Screw diameter	mm	30	32	35
Theoretical injection volume	cm	106	120	144
Shot weight	g(ps)	100	114	136
Injection pressure	kgf/cm	2160	1898	587
Injection rate	cm³/sec	65	74	88
Screw speed	rpm	200
Barrel heating power	kw	4.2
Clamping force	T	60
Open stroke	mm	250
Min mold height	mm	150/250
Max mold height	mm	400/500
Slide plater size	mm	680x540
Space between tie-bar	mm	460x310
Eject force	T	2.2
Ejector stroke	mm	40
Ejector pin NO	pc	1
Rotating plater diameter	mm	￠900
Hydraulic pressure	kgf/cm²	160
Motor power	kw	7.5
Mechine size(LxWxH)	m	1.55x1.2x2.8
Machine weight	T	2.1

Certification

FAQ

1.Q:What are the two types of injection molding machines?

A:There are two main types of injection molds: vertical molds and horizontal molds. Usually the injection and clamping device of vertical injection molding machines are vertically arranged. They're small in footprint and have convenient insert operations that make them suitable for producing precision small parts (like electronic components and medical devices). Horizontal injection molding machines are positioned horizontally. It has high automation degree and convenient maintenance, which is suitable for mass production of large parts, such as automotive components and daily necessities.

2.Q:What is the difference between vertical and horizontal injection molding machine?

A:The main difference between vertical and horizontal injection molding machine is the structure layout and application scenario: the vertical injection molding machine is an injection device and a clamping device arranged vertically. It has a small footprint, whichis suitable for the production of precision small parts or insert-type products. The horizontal injection molding machine is horizontal laid out, fully automated, convenient maintenance, and is suitable for the large-scale production of large parts. The vertical injection molding machine has a better resistance to seismic performance, and the horizontal injection molding machine has a higher long-term cost performance.

3.Q:What is a vertical injection molding machine?

A:The Vertical Injection Molding Machine is an injection molding equipment in which the injection device and the clamping device are vertically arranged. It is specially used for the production of insert-type products, precision small-sized products or thin-walled products. Its mold opens and closes vertically, saving space and facilitating manual or automated insert operations. It has the characteristics of energy conservation, high efficiency and high precision, and is suitable for fields such as electronic components and medical devices,To learn more,click here>>!

4.Q:How much does an injection mold machine cost?

A:The price of an injection molding machine specifically depends on the equipment specifications (clamping force, injection volume), the degree of automation, and the differences in brand technology. The cost of small standard models is relatively low, while the prices of large high-precision or multi-color models increase significantly. It is recommended to contact HONLED for an accurate quotation according to your needs.
