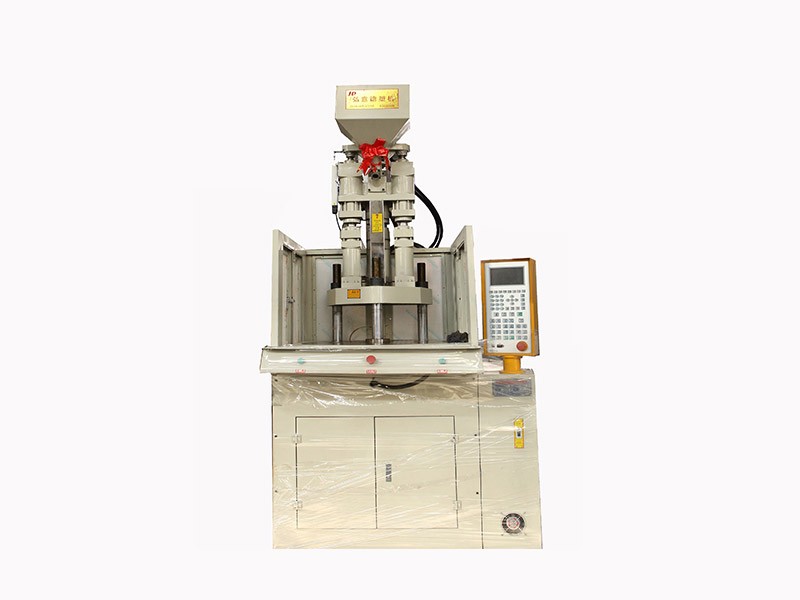

Rotary Vertical Injection Moulding Machine Features
The Screw diameter of HYD 600(2R/3R) Rotary Vertical Injection Moulding Machine is 30/32/35 mm, the Theoretical injection Volume is 106/120/144 (cm³) ,the injection rate is 65/74/88 (cm³/S) , tthe Screw speed is 200 rpm,the Barrel heating power is 4.2 kw,the Clamping force is 60 T,the Open stroke is 250 mm ,the Min mold height is 150/250 mm,the Max mold height is 400/500 mm,the Slide plater size is 680x540 mm,the Space between tie-bar is 460x310 mm,the Eject force 2.2 T,the Ejector stroke is 40 mm,the Ejector pin NO is 1 PC,the Hydraulic pressure is 160 kgf/cm²，the Motor power is 7.5 kw,the Mechine size(Lx WxH) is 1.55x1.2x2.8 m,the Machine weight is 2.1 T.

✔ Vertical compact design optimizes floor space utilization

✔ 180° rotary table allows continuous two-station operation

✔ Seamless workflow between loading/unloading and injection processes

✔ 30% faster production compared to conventional machines

The Rotary Vertical Injection Moulding Machine is Ideal for high-volume insert molding of precision components, this rotary vertical injection system delivers unmatched efficiency in automotive, electronics, and medical applications.

Technical Parameters

Certification

FAQ

1.Q:What are the two types of injection molding machines?

A:There are two main types of injection molds: vertical molds and horizontal molds. Usually the injection and clamping device of vertical injection molding machines are vertically arranged. They're small in footprint and have convenient insert operations that make them suitable for producing precision small parts (like electronic components and medical devices). Horizontal injection molding machines are positioned horizontally. It has high automation degree and convenient maintenance, which is suitable for mass production of large parts, such as automotive components and daily necessities.

2.Q:What is the difference between vertical and horizontal injection molding machine?

A:The main difference between vertical and horizontal injection molding machine is the structure layout and application scenario: the vertical injection molding machine is an injection device and a clamping device arranged vertically. It has a small footprint, whichis suitable for the production of precision small parts or insert-type products. The horizontal injection molding machine is horizontal laid out, fully automated, convenient maintenance, and is suitable for the large-scale production of large parts. The vertical injection molding machine has a better resistance to seismic performance, and the horizontal injection molding machine has a higher long-term cost performance.

3.Q:What is a vertical injection molding machine?

A:The Vertical Injection Molding Machine is an injection molding equipment in which the injection device and the clamping device are vertically arranged. It is specially used for the production of insert-type products, precision small-sized products or thin-walled products. Its mold opens and closes vertically, saving space and facilitating manual or automated insert operations. It has the characteristics of energy conservation, high efficiency and high precision, and is suitable for fields such as electronic components and medical devices,To learn more,click here>>!

4.Q:How much does an injection mold machine cost?

A:The price of an injection molding machine specifically depends on the equipment specifications (clamping force, injection volume), the degree of automation, and the differences in brand technology. The cost of small standard models is relatively low, while the prices of large high-precision or multi-color models increase significantly. It is recommended to contact HONLED for an accurate quotation according to your needs.
