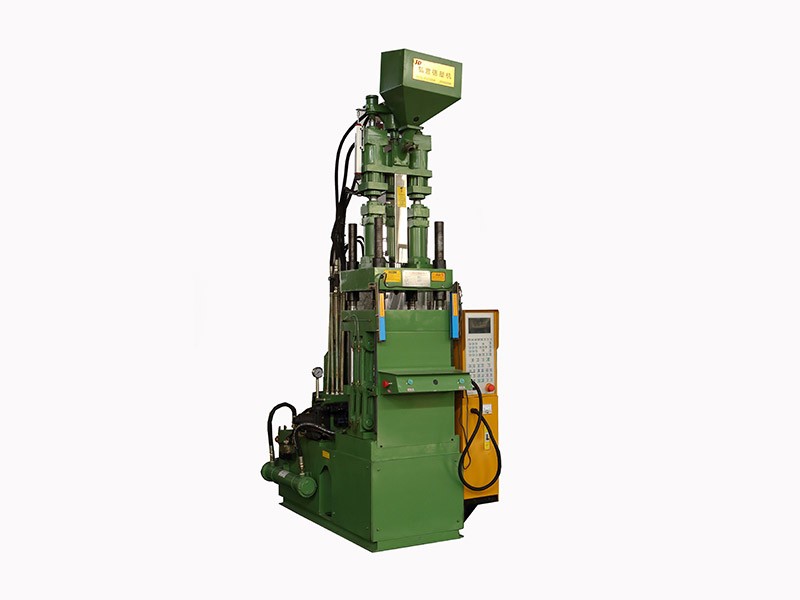

Vertical Injection Machine 80t Features
The screw diameter of HYD-850 Vertical Injection Molding Machine is 32/38MM, the Theoretical Shot Volume(cm³) is 60/136 ,the injection rate is 85(cm³/S) , the injection weight is 100/126g, and the Clamping Type is Double Elbow.The Ejection Stroke(mm) is 60,The Clamping Force(ton) is 85，The Max.Mould Plate Stroke(mm) is 280,rhe Mold Thicknes(mm) is 350,The Distance Between Tie Bare(mm) is 345x265,The Platen Size(mm) is 505x425.The Heating Power(kw) is 5.05.The Pump Motor Power(kw) is 7.5,The Machine Weigh(ton) is 1.5,The Machine Dimension(m) Is 1.5x1.1x2.65.

Technical Parameters

Finished Product Display

Certification

FAQ

1.Q:What are the two types of injection molding machines?

A:There are two main types of injection molds: vertical molds and horizontal molds. Usually the injection and clamping device of vertical injection molding machines are vertically arranged. They're small in footprint and have convenient insert operations that make them suitable for producing precision small parts (like electronic components and medical devices). Horizontal injection molding machines are positioned horizontally. It has high automation degree and convenient maintenance, which is suitable for mass production of large parts, such as automotive components and daily necessities.

2.Q:What is the difference between vertical and horizontal injection molding machine?

A:The main difference between vertical and horizontal injection molding machine is the structure layout and application scenario: the vertical injection molding machine is an injection device and a clamping device arranged vertically. It has a small footprint, whichis suitable for the production of precision small parts or insert-type products. The horizontal injection molding machine is horizontal laid out, fully automated, convenient maintenance, and is suitable for the large-scale production of large parts. The vertical injection molding machine has a better resistance to seismic performance, and the horizontal injection molding machine has a higher long-term cost performance.

3.Q:What is a vertical injection molding machine?

A:The Vertical Injection Molding Machine is an injection molding equipment in which the injection device and the clamping device are vertically arranged. It is specially used for the production of insert-type products, precision small-sized products or thin-walled products. Its mold opens and closes vertically, saving space and facilitating manual or automated insert operations. It has the characteristics of energy conservation, high efficiency and high precision, and is suitable for fields such as electronic components and medical devices,To learn more,click here>>!

4.Q:How much does an injection mold machine cost?

A:The price of an injection molding machine specifically depends on the equipment specifications (clamping force, injection volume), the degree of automation, and the differences in brand technology. The cost of small standard models is relatively low, while the prices of large high-precision or multi-color models increase significantly. It is recommended to contact HONLED for an accurate quotation according to your needs.
