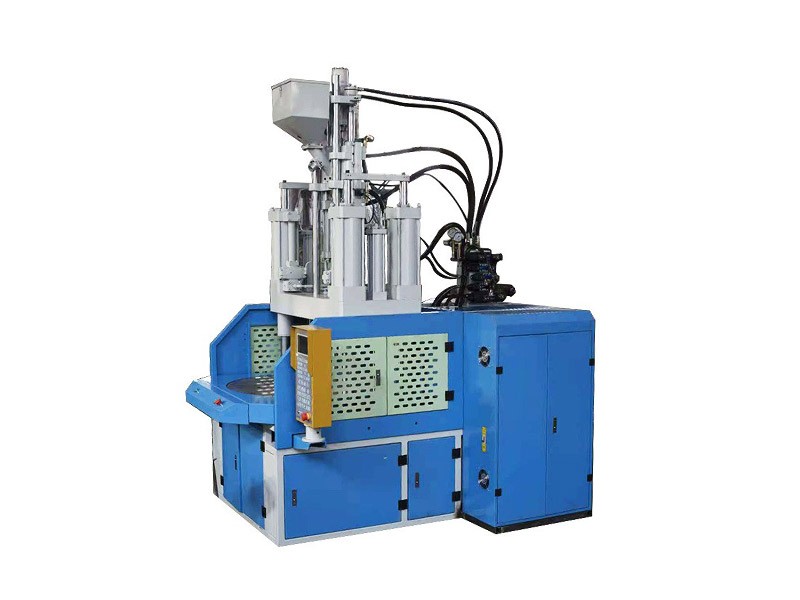

The Honled HYD 850(2R/3R) vertical rotary moulding machine is specifically designed as PVC vertical injection moulding machine. It is suitable for injection molding requirements ranging from 120 tons to 150 tons. It is highly efficient and stable, with multiple clamping force options available, supporting precision production and offering various model configurations. Check out the technical parameters!
Vertical Rotary Moulding Machine Features
The Screw diameter of HYD 850(2R/3R) pvc vertical injection moulding machine is 32/35/38 mm, the Theoretical injection Volume is 129/154/181 (cm³) ,the injection rate is 80/96/113 (cm³/S) , tthe Screw speed is 200 rpm,the Barrel heating power is 5.25 kw,the Clamping force is 85 T,the Open stroke is 250 mm ,the Min mold height is 170/300 mm,the Max mold height is 450/550 mm,the Slide plater size is 740x570 mm,the Space between tie-bar is 510x340 mm,the Eject force 2.2 T,the Ejector stroke is 65 mm,the Ejector pin NO is 1 PC,the Hydraulic pressure is 160 kgf/cm²，the Motor power is 11 kw,the Mechine size(Lx WxH) is 1.75x1.2x2.8 m,the Machine weight is 2.1 T.
80T clamping force for stable PVC molding
Dual-station rotary system enables simultaneous operations
Energy-saving performance with low maintenance
Automation-ready for streamlined production
Technical Parameters
Machine Type | Unit | HYD850(2R/3R) | HYD1200(2R/3R) | HYD1500(2R/3R) | HYD2100 (2R/3R) | |||||||||
Screw diameter | mm | 32 | 35 | 38 | 35 | 38 | 42 | 38 | 42 | 46 | 42 | 46 | 50 | |
Theoretical injection volume | cm | 129 | 154 | 181 | 173 | 204 | 249 | 227 | 277 | 332 | 305 | 365 | 432 | |
Shot weight | g(ps) | 122 | 145 | 171 | 163 | 193 | 236 | 214 | 262 | 314 | 287 | 345 | 408 | |
Injection pressure | kgf/cm | 2039 | 704 | 1446 | 959 | 662 | 1361 | 2011 | 1646 | 372 | 1959 | 1633 | 1382 | |
Injection rate | cm³/sec | 80 | 96 | 113 | 98 | 115 | 141 | 118 | 144 | 173 | 160 | 193 | 228 | |
Screw speed | rpm | 200 | 200 | 200 | 200 | |||||||||
Barrel heating power | kw | 5.25 | 5.9 | 6.55 | 7.45 | |||||||||
Clamping force | T | 85 | 120 | 150 | 210 | |||||||||
Open stroke | mm | 250 | 300 | 300 | 350 | |||||||||
Min mold height | mm | 170/300 | 200/300 | 200/350 | 250/350 | |||||||||
Max mold height | mm | 450/550 | 500/600 | 550/650 | 600/700 | |||||||||
Slide plater size | mm | 740x570 | 890x680 | 960x930 | 1050x1000 | |||||||||
Space between tie-bar | mm | 510x340 | 610x400 | 660x630 | 720x670 | |||||||||
Eject force | T | 2.2 | 4 | 5.4 | 7 | |||||||||
Ejector stroke | mm | 65 | 75 | 80 | 100 | |||||||||
Ejector pin NO | pc | 1 | 1 | 1 | 1 | |||||||||
Rotating plater diameter | mm | ￠1000 | ￠1200 | ￠1380 | 1800 | |||||||||
Hydraulic pressure | kgf/cm² | 160 | 160 | 160 | 160 | |||||||||
Motor power | kw | 11 | 11 | 15 | 18.5 | |||||||||
Mechine size(LxWxH) | m | 1.75x1.2x2.8 | 2.4x1.5x3.6 | 2.5x1.65x3.8 | 2.7x1.7x43 | |||||||||
Machine weight | T | 2.1 | 6.5 | 7.3 | 8.85 | |||||||||
Certification
FAQ
1.Q:What are the two types of injection molding machines?
A:There are two main types of injection molds: vertical molds and horizontal molds. Usually the injection and clamping device of vertical injection molding machines are vertically arranged. They're small in footprint and have convenient insert operations that make them suitable for producing precision small parts (like electronic components and medical devices). Horizontal injection molding machines are positioned horizontally. It has high automation degree and convenient maintenance, which is suitable for mass production of large parts, such as automotive components and daily necessities.
2.Q:What is the difference between vertical and horizontal injection molding machine?
A:The main difference between vertical and horizontal injection molding machine is the structure layout and application scenario: the vertical injection molding machine is an injection device and a clamping device arranged vertically. It has a small footprint, whichis suitable for the production of precision small parts or insert-type products. The horizontal injection molding machine is horizontal laid out, fully automated, convenient maintenance, and is suitable for the large-scale production of large parts. The vertical injection molding machine has a better resistance to seismic performance, and the horizontal injection molding machine has a higher long-term cost performance.
3.Q:What is a vertical injection molding machine?
A:The Vertical Injection Molding Machine is an injection molding equipment in which the injection device and the clamping device are vertically arranged. It is specially used for the production of insert-type products, precision small-sized products or thin-walled products. Its mold opens and closes vertically, saving space and facilitating manual or automated insert operations. It has the characteristics of energy conservation, high efficiency and high precision, and is suitable for fields such as electronic components and medical devices,To learn more,click here>>!
4.Q:How much does an injection mold machine cost?
A:The price of an injection molding machine specifically depends on the equipment specifications (clamping force, injection volume), the degree of automation, and the differences in brand technology. The cost of small standard models is relatively low, while the prices of large high-precision or multi-color models increase significantly. It is recommended to contact HONLED for an accurate quotation according to your needs.
Company Profile
As one of top vertical injection molding machine manufacturers,HONLED Plastics Machinery Co., Ltd has been committed in producing high quality shoe upper machine producer since its foundation at 1998. Our company occupies 8000M with the capacity of 1000 sets per year of small plastic injection molding machine, the clamping force from 30T to 1000T.And our company have passed IS09002 certification and all of our vertical injection molding machines have got CE certification.Now we have served severalthousand domestic customers and exported to more than 30 countries.
Why Do Customers Choose Our Vertical Injection Molding Machine?
Professional sales service
You can purchase our products by phone. Our company has a dedicated sales team to serve you.
Procurement plan evaluation
Conduct professional assessments of customer situations and recommend suitable products based on needs.
Product usage training
Provide one-stop services such as product usage training and maintenance.
Pay attention to product quality
Nationwide warranty for 12 months, free parts replacement during the warranty period.
Now we have served severalthousand domestic customers and exported to more than 30 countries.
