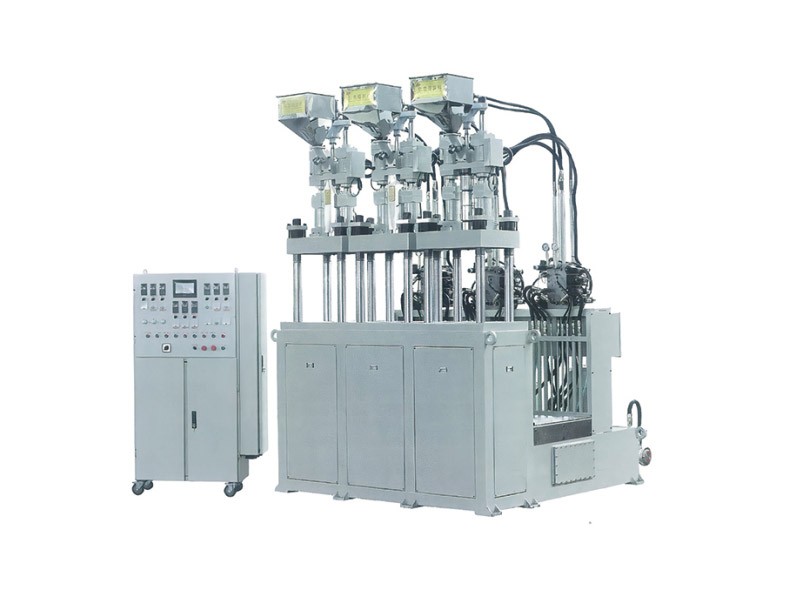

Tricolor and Bicolor Plastic Injection Machine Automation Equipment /

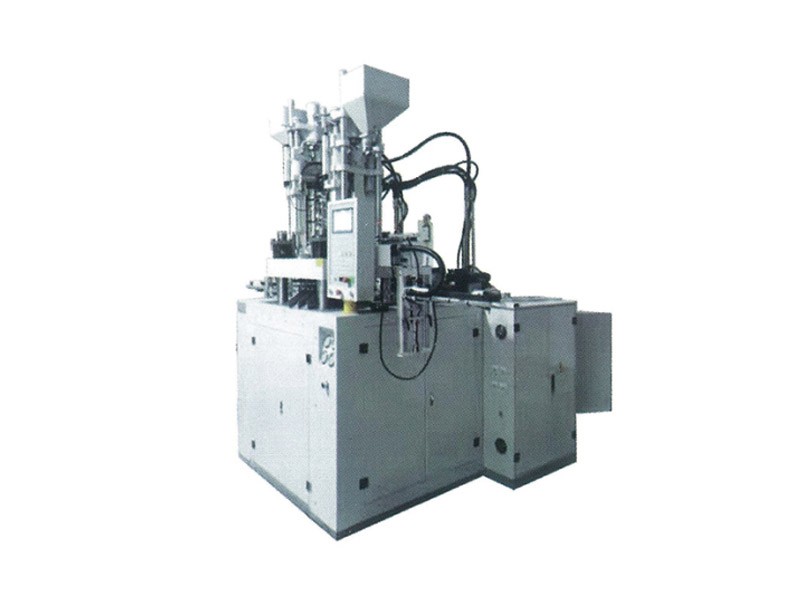

The HONLED 100 Ton Fully Automatic Vertical Injection Moulding Machine is specifically designed for efficient production. It integrates the technology of the Double Injection Machine, features rapid cooling, saves manpower, and is suitable for large-scale enterprises. It can enhance production capacity and reduce costs. Consult us now!
Customization Capability:Tailored to Specific Requirements
Theoretical Shot Volume(cm3/S) : 63
Clamping Force(T): 100
Injection Rate(cm3/S): 55
Certification Standards:CE,ISO9001
Characteristic
This set of machine specialize for handle fully automatic assembly line,with characteristic of highefficiency, fast cooling, widely use, cheaper moulding . After test, one labour can work for 3-4 sets ofmachine, we can save lots of labour and it was widely used in many big enterprise.
Technical Parameters
MODEL | 100 DC | |
Screw diameter | mm | ￠25 |
Theoretical injection volume | cm³ | 63 |
Injection pressure | kg/cm² | 2120 |
Shot weight | g | 54 |
Injection rate | cm³/sec | 55 |
Clamping force | T | 100 |
Distance Between Bare | mm | 480x480 |
Rotating plater diameter | mm | 690 |
Nozzle Center Height | mm | 340 |
Contain mold size | mm | (width 200x length 300)x2 mold |
Min mold heigh | mm | 180 |
Open stroke | mm | 300 |
Max open daylight | mm | 480 |
Ejector stroke | mm | 85 |
Eject force | T | 2.2 |
Rotating shaft stioke | mm | -- |
Motor power | kw | 22.5 |
Ter diameter | kw | 8.5 |
System pressure | kg/cm² | 140/210 |

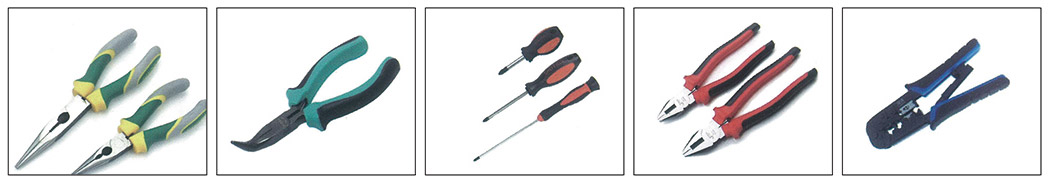

Finished Product Display
Certification
FAQ
1.Q:What are the two types of injection molding machines?
A:There are two main types of injection molds: vertical molds and horizontal molds. Usually the injection and clamping device of vertical injection molding machines are vertically arranged. They're small in footprint and have convenient insert operations that make them suitable for producing precision small parts (like electronic components and medical devices). Horizontal injection molding machines are positioned horizontally. It has high automation degree and convenient maintenance, which is suitable for mass production of large parts, such as automotive components and daily necessities.
2.Q:What is the difference between vertical and horizontal injection molding machine?
A:The main difference between vertical and horizontal injection molding machine is the structure layout and application scenario: the vertical injection molding machine is an injection device and a clamping device arranged vertically. It has a small footprint, whichis suitable for the production of precision small parts or insert-type products. The horizontal injection molding machine is horizontal laid out, fully automated, convenient maintenance, and is suitable for the large-scale production of large parts. The vertical injection molding machine has a better resistance to seismic performance, and the horizontal injection molding machine has a higher long-term cost performance.
3.Q:What is a vertical injection molding machine?
A:The Vertical Injection Molding Machine is an injection molding equipment in which the injection device and the clamping device are vertically arranged. It is specially used for the production of insert-type products, precision small-sized products or thin-walled products. Its mold opens and closes vertically, saving space and facilitating manual or automated insert operations. It has the characteristics of energy conservation, high efficiency and high precision, and is suitable for fields such as electronic components and medical devices,To learn more,click here>>!
4.Q:How much does an injection mold machine cost?
A:The price of an injection molding machine specifically depends on the equipment specifications (clamping force, injection volume), the degree of automation, and the differences in brand technology. The cost of small standard models is relatively low, while the prices of large high-precision or multi-color models increase significantly. It is recommended to contact HONLED for an accurate quotation according to your needs.
Company Profile
As one of top vertical injection molding machine manufacturers,HONLED Plastics Machinery Co., Ltd has been committed in producing high quality shoe upper machine producer since its foundation at 1998. Our company occupies 8000M with the capacity of 1000 sets per year of small plastic injection molding machine, the clamping force from 30T to 1000T.And our company have passed IS09002 certification and all of our vertical injection molding machines have got CE certification.Now we have served severalthousand domestic customers and exported to more than 30 countries.
Why Do Customers Choose Our Vertical Injection Molding Machine?
Professional sales service
You can purchase our products by phone. Our company has a dedicated sales team to serve you.
Procurement plan evaluation
Conduct professional assessments of customer situations and recommend suitable products based on needs.
Product usage training
Provide one-stop services such as product usage training and maintenance.
Pay attention to product quality
Nationwide warranty for 12 months, free parts replacement during the warranty period.
Now we have served severalthousand domestic customers and exported to more than 30 countries.
