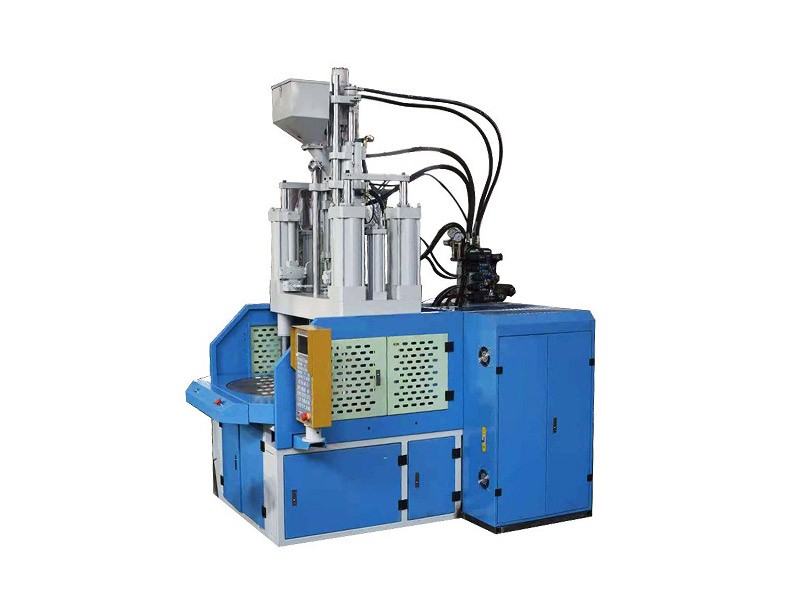

Vertical Injection Molding Machine with Rotary Table Features
The Screw diameter of HYD300(2R/3R) Vertical Injection Molding Machine is 25/28 mm, the Theoretical injection Volume is 59/74(cm³) ,the injection rate is 42/58(cm³/S) , the Screw speed is 180vrpm,the Barrel heating power is 2.9kw,the Clamping force is 30 T,the Open stroke is 200mm ,the Min mold height is 100/180 mm,the Max mold height is 300/380 mm,the Slide plater size is 550x410 mm,the Space between tie-bar is 370x230 mm,the Eject force 1.3 T,the Ejector stroke is 40 mm,the Ejector pin NO is 1 PC,the Hydraulic pressure is 160 kgf/cm²，the Motor power is 4 kw,the Mechine size(Lx WxH) is 1.35x1x2.3m,the Machine weight is 1 T.

1. High-Efficiency Multi-Station Production for Reduced Cycle Times

The Rotary Injection Molding Machine features a rotary table design with multiple independent stations, enabling simultaneous operations like injection, cooling, and ejection. This parallel processing cuts cycle times by 30–50% compared to traditional models, making it ideal for high-volume orders with rapid delivery demands.

2. Space-Optimized & Flexible Design

Its compact vertical rotation structure minimizes floor space usage, fitting into constrained factory layouts. The quick-change mold system allows rapid tooling swaps, accommodating diverse product specifications.

3. Precision Control for Consistent Product Quality

Equipped with a closed-loop control system, the Rotary Injection Molding Machine monitors and adjusts parameters (injection pressure, temperature, speed) in real time, ensuring dimensional accuracy and surface finish stability.

4. Energy-Saving & Cost-Efficient Operations

By integrating servo-driven technology and heat recovery systems, the Rotary Injection Molding Machine reduces energy consumption by 20–35% versus conventional models. Lower electricity costs align with overseas buyers’ focus on sustainable manufacturing and long-term ROI.

5. Fully Automated Integration & Smart Management

Seamless compatibility with robots, conveyors, and other automation equipment enables unmanned production.

6. Multi-Material/Multi-Color Molding Capabilities

Certain models support dual-shot or multi-material injection, producing complex parts (e.g., soft-hard composite, multi-color components). This meets demand for innovative designs in automotive, electronics, and medical sectors, expanding application scope.

7. Durable & Low-Maintenance Construction

Key components use high-strength alloy steel and wear-resistant materials, rigorously tested for fatigue resistance. The modular design simplifies maintenance, with easy spare part replacement to minimize downtime and ensure uninterrupted production.

Technical Parameters

Certification

FAQ

1.Q:What are the two types of injection molding machines?

A:There are two main types of injection molds: vertical molds and horizontal molds. Usually the injection and clamping device of vertical injection molding machines are vertically arranged. They're small in footprint and have convenient insert operations that make them suitable for producing precision small parts (like electronic components and medical devices). Horizontal injection molding machines are positioned horizontally. It has high automation degree and convenient maintenance, which is suitable for mass production of large parts, such as automotive components and daily necessities.

2.Q:What is the difference between vertical and horizontal injection molding machine?

A:The main difference between vertical and horizontal injection molding machine is the structure layout and application scenario: the vertical injection molding machine is an injection device and a clamping device arranged vertically. It has a small footprint, whichis suitable for the production of precision small parts or insert-type products. The horizontal injection molding machine is horizontal laid out, fully automated, convenient maintenance, and is suitable for the large-scale production of large parts. The vertical injection molding machine has a better resistance to seismic performance, and the horizontal injection molding machine has a higher long-term cost performance.

3.Q:What is a vertical injection molding machine?

A:The Vertical Injection Molding Machine is an injection molding equipment in which the injection device and the clamping device are vertically arranged. It is specially used for the production of insert-type products, precision small-sized products or thin-walled products. Its mold opens and closes vertically, saving space and facilitating manual or automated insert operations. It has the characteristics of energy conservation, high efficiency and high precision, and is suitable for fields such as electronic components and medical devices,To learn more,click here>>!

4.Q:How much does an injection mold machine cost?

A:The price of an injection molding machine specifically depends on the equipment specifications (clamping force, injection volume), the degree of automation, and the differences in brand technology. The cost of small standard models is relatively low, while the prices of large high-precision or multi-color models increase significantly. It is recommended to contact HONLED for an accurate quotation according to your needs.
