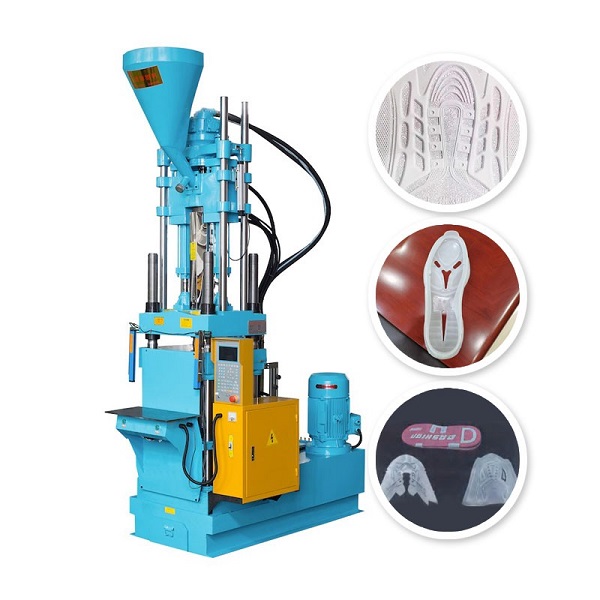

With the continuous development of the footwear industry, the role of shoe molding machines in shoe production is becoming increasingly prominent. From traditional handmade shoemaking to today's automated production, equipment such as shoe mold machines and shoe injection molding machines are constantly being updated, providing strong technical support for shoe manufacturing. However, in order to ensure the normal operation of these devices and extend their service life, proper maintenance and troubleshooting are crucial. The following will provide a detailed introduction to the maintenance and troubleshooting techniques of the shoe molding machine.

1. Regular maintenance program

Daily cleaning

Daily cleaning of the shoe molding machine is a fundamental maintenance task. Firstly, clean the residual material on the surface of the mold to prevent it from affecting the next molding process, such as causing surface defects in the product. Use specialized tools and cleaning agents to carefully remove residue from the surface of the mold, taking care not to scratch the mold. At the same time, wipe the body to keep the appearance of the device clean and prevent dust and debris from entering the interior of the machine.

Weekly inspection and lubrication

Weekly inspection and lubrication of key components are important steps to ensure the normal operation of the machine. The screw is one of the core components of the shoe injection molding machine. Check the wear of the screw and replace it in a timely manner if there is any wear. At the same time, lubricate the screw to reduce friction and extend its service life. The hydraulic system is also a key area that requires special attention. Check the level and quality of the hydraulic oil. If insufficient or deteriorated hydraulic oil is found, it should be added or replaced in a timely manner. Inspect all joints and seals of the hydraulic system to ensure there are no leaks.

Monthly testing and calibration

Monthly testing and calibration of the heating and cooling system is key to ensuring the accuracy of temperature control. Check the working status of the heating element and replace it promptly if it is damaged. Calibrate the temperature controller to ensure accurate temperature display. At the same time, check the pipes and valves of the cooling system to ensure good cooling effect. The accuracy of temperature control is crucial for the quality of footwear products, as inaccurate temperatures may lead to unstable product dimensions, appearance defects, and other issues.

Quarterly comprehensive inspection

A comprehensive inspection of the electrical system every quarter can prevent the occurrence of electrical failures. Check the connection of wires and cables to ensure no looseness or damage. Check the working status of electrical components and replace them promptly if there are any abnormalities. Perform functional testing on the electrical control system to ensure that all control functions are functioning properly. The electrical system is the core control system of the shoe injection molding machine. Once a malfunction occurs, it may cause the machine to malfunction.

2. Common fault diagnosis and solutions

The product has flying edges

One of the common malfunctions of shoe molding machines is the occurrence of product flying edges. Possible reasons may be that the mold is not tightly closed or the molding pressure is too high. If the mold is not tightly closed, you can check the positioning device and locking mechanism of the mold, adjust the mold closing gap, and ensure that the mold is tightly closed. If the molding pressure is too high, the molding pressure can be appropriately reduced and the pressure parameters can be adjusted. Through practical case analysis, if a certain shoe factory discovers product burrs during the production process, and after inspection, it is found that the mold is not tightly closed, the problem can be solved by adjusting the mold.

Incomplete molding

Incomplete molding may be due to insufficient materials or insufficient temperature. Firstly, check the feeding system to ensure sufficient material supply. If the feeding system is normal, it may be due to a problem with the heating system, where the temperature is not enough to fully melt the material. Check the working status of the heating element, calibrate the temperature controller, and ensure that the heating temperature meets the requirements. For example, a shoe factory discovered that some products were not fully formed during the production process. After inspection, it was found that the heating system was faulty and the temperature was too low. After replacing the heating element, the problem was solved.

The machine produces abnormal noise

Abnormal noise from the machine may be due to component wear or poor lubrication. Firstly, check the wear of each component, such as bearings, gears, etc. If worn parts are found, they should be replaced in a timely manner. At the same time, strengthen lubrication to ensure reduced friction between the various components of the machine. For example, a shoe mold machine in a certain shoe factory produced abnormal noise during operation. After inspection, it was found that the bearings were severely worn. After replacing the bearings and strengthening lubrication, the noise disappeared.

3. Long term equipment maintenance and upgrading

Long term performance evaluation

It is necessary to conduct a comprehensive performance evaluation of the shoe mold machine after long-term use. The evaluation includes aspects such as production efficiency, product quality, and energy consumption of the equipment. Through performance evaluation, the operating status of the equipment can be understood, potential problems can be identified, and a basis can be provided for the upgrade and renovation of the equipment.

Upgrade and transform

Based on the performance evaluation results, targeted upgrades and modifications can be carried out. For example, replacing more efficient heating elements can improve heating speed and temperature control accuracy, and reduce energy consumption. Upgrading the automation control system can improve production efficiency and product quality, and reduce manual operation errors. At the same time, some successful cases of equipment upgrades are introduced, such as a shoe factory upgrading the automation control system of the shoe mold machine, which increased production efficiency by 30% and significantly improved product quality.

Economic Benefit Analysis

Upgrading and renovating equipment can not only improve production performance, but also bring economic benefits. By reducing energy consumption, improving production efficiency, and reducing waste rates, production costs can be lowered and the competitiveness of enterprises can be enhanced. Conducting economic benefit analysis, such as the energy-saving effect of upgraded computing equipment and the benefits brought by increased production efficiency, can provide strong support for enterprise decision-making.

4. Summary

In summary, proper maintenance and troubleshooting are crucial for the normal operation and extended service life of shoe injection molding machines. Through regular maintenance procedures, including daily cleaning, weekly inspection and lubrication, monthly testing and calibration, and quarterly comprehensive inspections, it is possible to ensure the normal operation of all components of the machine. For common faults such as product flash, incomplete molding, abnormal machine noise, etc., the problem can be solved in a timely manner through correct diagnostic methods and solutions. Long term equipment maintenance and upgrades can improve production performance, adapt to constantly changing market demands and production process requirements.
