In modern industrial manufacturing, Rotary Injection Molding Machines have become core equipment in many industries due to their high efficiency and precise production capabilities. This article aims to provide a comprehensive analysis of Rotary Injection Molding Machines, helping you deeply understand the working principles, main advantages, and wide-ranging applications of this advanced equipment, while addressing common questions that customers encounter when selecting and using such machines.

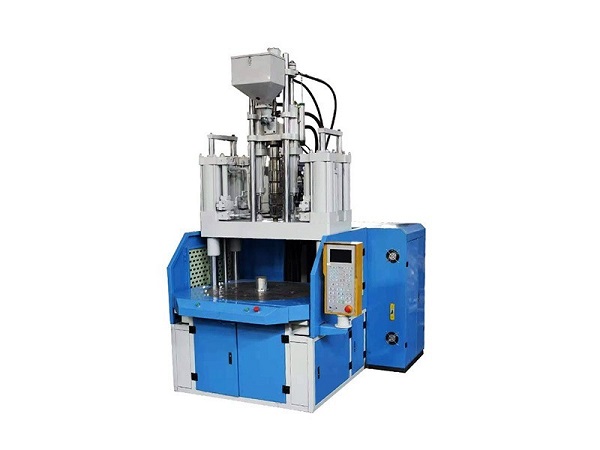

What is a Rotary Injection Molding Machine?

A Rotary Injection Molding Machine is a device that performs multi-station injection molding operations through a rotating platform. Different from traditional injection molding machines, the Rotary Injection Molding Machine achieves cyclic switching of multiple mold stations through a Rotary Table. For example, the equipment can be configured with 2-4 lower mold stations to synchronously complete processes such as injection molding, cooling, and demolding within the same cycle. This design increases single-cycle efficiency by 30%-50%, making it particularly suitable for the continuous production of multi-color and multi-material products.

Core Components of a Rotary Moulding Machine

1. Rotating Platform

The rotating platform is a key component of the equipment, enabling multi-station switching during the injection molding process. For example, while one station is in the injection phase, another station can simultaneously perform cooling, thus greatly enhancing production efficiency.

2. Injection Unit

The injection unit consists of a barrel, screw, and injection nozzle, responsible for heating and injecting raw materials into the mold. The injection unit of a Rotary Injection Molding Machine typically features high precision and high pressure to ensure consistent product quality.

3. Mold System

The mold system determines the final shape and dimensions of the injection-molded product. The mold design of a Rotary Moulding Machine usually supports multi-cavity molds, enabling the production of multiple products in a single operation.

Working Principle of Rotary Injection Molding Machine

1. Material Heating and Melting

Raw materials (such as plastic pellets) enter the equipment through a hopper and are heated to a molten state at high temperatures. This process is driven by a screw to ensure uniform melting of the material.

2. Injection and Mold Filling

The molten material is injected into the mold cavity under high pressure. The injection speed and pressure of a Rotary Injection Molding Machine can be precisely controlled to achieve high-quality molding of complex parts.

3. Rotation and Cooling

After injection is complete, the rotating platform moves the mold to the cooling station, while a new round of injection begins at other stations. Multi-station operation significantly reduces production downtime.

4. Product Ejection

Once cooling is complete, the mold opens, and the finished product is ejected by a robotic arm or manually. The entire process runs in a cycle, achieving extremely high production efficiency.

Main Advantages of Rotary Injection Molding Machine

1. Improved Production Efficiency

Thanks to the multi-station rotating design, Rotary Injection Molding Machines can perform injection and cooling simultaneously, drastically shortening the production cycle.

2. Enhanced Product Quality

The equipment’s high-precision injection unit and multi-cavity mold design ensure consistency and high quality in finished products, making it suitable for producing complex parts.

3. Reduced Labor Costs

Rotary injection molding machines have a high degree of automation, reducing reliance on manual operations and lowering labor costs in the production process.

4. Energy Saving and Environmental Friendliness

Many Rotary Injection Molding Machines adopt energy-saving designs, such as servo motor drives and energy recovery systems, which reduce energy consumption and are more environmentally friendly.

Wide Applications of Rotary Injection Molding Machine

1. Automotive Industry

In automotive parts manufacturing, Rotary Injection Molding Machines are widely used to produce complex plastic parts such as dashboard panels, headlight housings, and interior components.

2. Medical Industry

Medical devices require extremely high precision and consistency. Rotary injection molding machines are the preferred equipment for producing syringes, medical tubing, and other products due to their high precision and stability.

3. Home Appliance Manufacturing

Many plastic components in household appliances, such as casings, buttons, and internal structural parts, can be efficiently produced by Rotary Moulding Machines.

4. Packaging Industry

Rotary injection molding technology is also widely used in producing food packaging, container lids, and other products. It is favored by the packaging industry for its high speed and low cost.

How to Choose a Suitable Rotary Injection Molding Machine?

1. Select Specifications Based on Production Needs

When choosing equipment, determine specific parameters such as clamping force, injection volume, and rotation diameter based on the product specifications, dimensions, and output required for production.

2. Prioritize Equipment Stability

High-quality Rotary Injection Molding Machines should have the ability to operate stably over the long term to avoid production downtime due to equipment failures.

3. Focus on After-Sales Service and Support

The operation and maintenance of the equipment directly impact production efficiency, so it is crucial to choose a supplier with comprehensive after-sales services.

Conclusion

Rotary Injection Molding Machines have become one of the core devices in modern manufacturing due to their high efficiency, precision, and wide applicability. Whether for automotive parts, medical devices, or packaging products, rotary injection molding machines can provide high-quality solutions. If you are looking for a reliable and high-performance Rotary Injection Molding Machine, HONLED is your best choice. We are committed to providing efficient and energy-saving injection molding equipment to safeguard your production!
