In the modern automobile industry, plastic parts are no longer simple functional parts. They are deeply integrated into the lightweight, intelligent and personalized design of automobiles, become an important part of improving vehicle performance, safety and aesthetics. From precision interior buttons to key power system components, injection molding technology is the core process to achieve large-scale, high-efficiency and high-precision production of these parts.

As a leading manufacturer of Injection Molding machines in China, HONLED has been deeply engaged in the development and manufacturing of Vertical Injection Molding machines for many years, in the field of auto parts production occupies an indispensable position.

Structure characteristics and working mode of vertical injection molding machine

The most notable feature of the vertical injection molding machine is that the clamping device and the injection device are arranged in a vertical direction. Honled vertical injection molding machine further optimized design, with the following advantages:

Small footprint: compact machine structure, can effectively save valuable workshop space, easy to carry out multiple equipment in a limited area of the assembly line layout.

Easy to insert automation: vertical opening and closing mode, with manipulator or robot, can realize the top of the mold barrier-free pick-up, insert installation and material delivery, very suitable for fully automated production.

Gravity Advantage: because the mold is horizontally placed, in the placement of metal inserts (such as nuts, guide sleeve, Electrode Piece) , the use of gravity to make it stable in the cavity, the utility model greatly improves the precision and stability of the insert placement, and avoids the problem of the offset or falling off of the insert which may occur in the horizontal machine.

Uniform die force: the vertical direction of pressure, so that the die to bear the tension more symmetrical, help to extend the life of the die, especially suitable for small and medium-sized precision die.

Typical application scenarios of vertical injection molding machine in the field of automobile parts

Honled vertical injection molding machines are widely used in the production of automotive parts in the following scenarios：

Insert Molding: this is the most competitive area for vertical injection Molding machines. There are a number of parts in automobiles that require the integration of metal and plastic, such as:

Engine peripheral: plastic connector of engine wiring harness (including metal terminal) , sensor shell, etc. .

Interior functional parts: window lifter switch, center console button, seat adjustment knob (internal with metal thread inserts) , etc. .

Safety system: injection molding of conductive inserts in airbag components, safety belt buckles, etc. .

In the production of these components, the vertical machine can ensure that the metal insert positioning accuracy, no displacement, to protect the product conductivity, connection strength and dimensional accuracy.

Complex and sophisticated micro parts: cars are becoming more and more electronic and are filled with small, sophisticated plastic parts.

Automotive electronic modules: ECU (Electronic Control Unit) housings, precision gears on various controllers, racks, connectors, etc. .

Optical Lens: for automotive cameras, radar sensors optical lens, its forming requirements of high cleanliness and stability, vertical machine more easily in the upper configuration of clean hood.

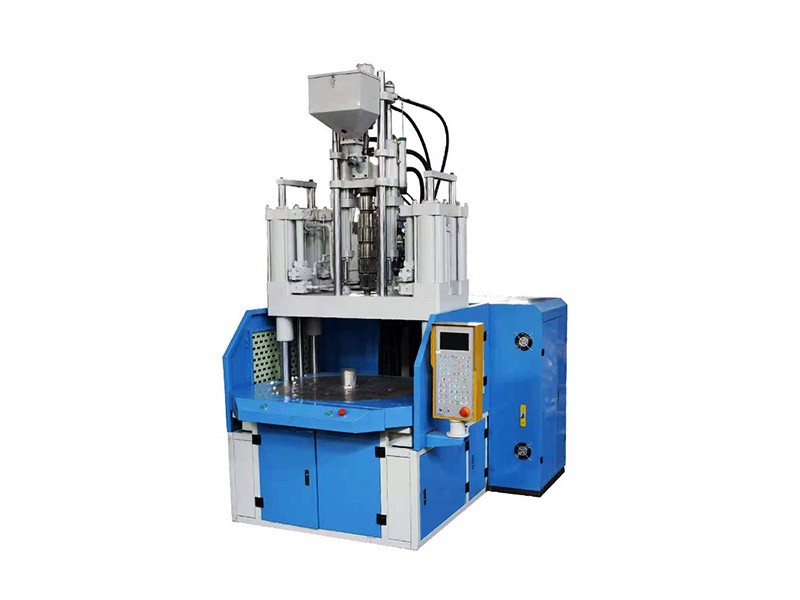

Multi-color and multi-material injection molding parts: by adding turntables or multiple injection systems, the vertical injection molding machine can efficiently produce two-color or two-material auto parts.

Interior two-color pieces: such as two-color combination of hard and soft plastic door handles, gearshift dust cover.

Sealing element: such as hard plastic fuel tank cover or filter shell with flexible sealing rubber ring.

Comparison with horizontal injection molding machine and consideration of type selection

Although horizontal injection molding machines have absolute advantages in the production of large structural parts (such as bumpers and dashboards) , vertical machines are irreplaceable in their specific application scenarios. For auto parts production, HONLED recommends choosing the type of equipment based on product characteristics:

Vertical machine preferred scenario: when the product involves metal inserts, need to make full use of vertical space for automation, or belong to small and medium precision parts, vertical machine is more economical, efficient and reliable choice.

Horizontal machine preferred scenario: when the production of large deep-cavity products (such as the entire dashboard) , the need to rely on gravity for natural demoulding, or the machine tonnage and injection volume requirements are very high, horizontal machine is more suitable.

For automobile parts manufacturers, the vertical machine is often the key equipment to complete the specific precision process in the production line, and the horizontal machine complements each other to build an efficient and flexible production system.

Development Trends and future prospects

With the automobile industry to the"New four modernizations"(electrification, intelligence, networking, sharing) in-depth evolution, vertical injection molding technology also put forward new requirements:

Electric Drive: the surge in demand for high-voltage connectors, battery module brackets, charging gun parts and other precision inserts for new energy vehicles has brought a broad new market for vertical injection molding machines.

Deep integration of smart manufacturing: the ease with which vertical machines can be automated allows for seamless integration into Industry 4.0 smart factories. Predictive maintenance and digital management are implemented by adding IoT sensors to monitor equipment status, production parameters and product quality in real time.

Adaptation of new materials and new technology: in order to meet the demand of lightweight, more new materials such as long glass fiber reinforced plastics (LFT) , special engineering plastics are applied. Vertical injection molding machines need to continuously improve the accuracy of injection control and temperature control to meet the processing challenges of these materials.

Conclusion

In short, vertical injection molding machine is not horizontal injection molding machine"Alternative" or"Degradation", but for a specific production process"Optimal solution. It plays a key role that can not be replaced by horizontal machine in the field of auto parts, especially in the field of insert molding, precision electronics and micro-structural parts. Its compact design, natural and efficient integration with automation, and unrivalled friendliness towards inserts make it an indispensable precision weapon in the arsenal of modern auto parts manufacturers. With the continuous progress of technology and the continuous expansion of application scenarios, vertical injection molding machine will continue to play an important role in the process of precision and intelligence of automobile manufacturing in the future.

As a professional manufacturer of injection molding machine, HONLED provides customers with high-performance vertical injection molding equipment and whole-chain solutions through technological innovation and industry penetration, helping enterprises to improve production efficiency and product competitiveness. In the future, HONLED will continue to focus on intelligent and green manufacturing, providing reliable technical support for global auto parts suppliers.
